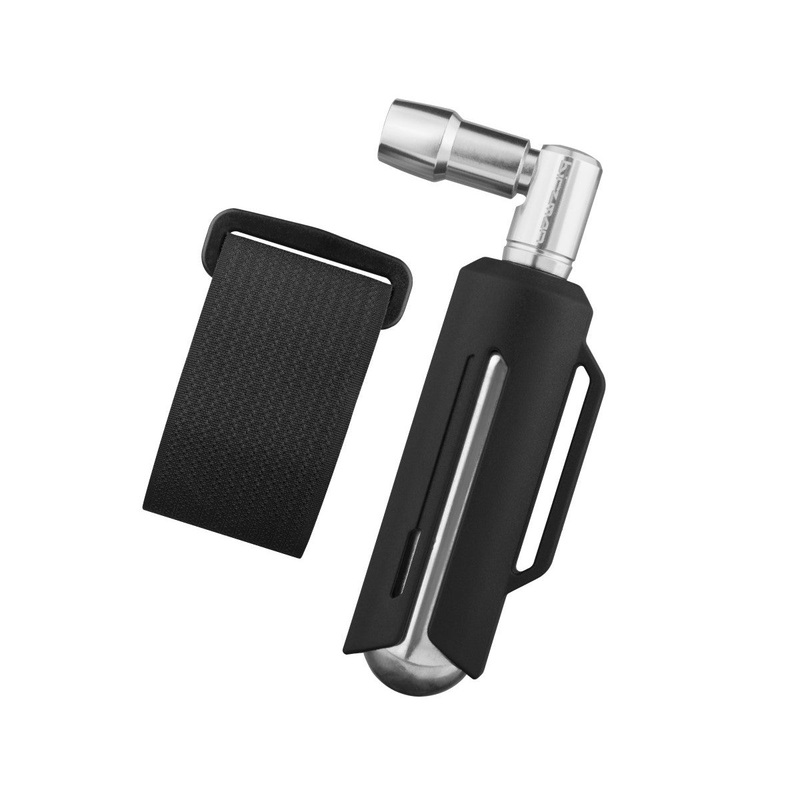

Birzman Tools | E-Grip Turn CO2 Inflator Set
E-Grip Turn BM23-PO-AZC03-SETE-Grip Turn is a CO2 set featuring a multi-purpose grip allowing safe storage of the valve head with a cartridge when not in use.The integrated spacer on the grip limits the length of the threads, preventing the valve head from
E-Grip Turn BM23-PO-AZC03-SET
E-Grip Turn is a CO2 set featuring a multi-purpose grip allowing safe storage of the valve head with a cartridge when not in use.
The integrated spacer on the grip limits the length of the threads, preventing the valve head from accidentally piercing the cartridge.
To use the set for inflation, disassemble, turn the grip upside down, then place a cartridge into the grip and connect the valve head.
The set also features a loop for Velcro straps, for an easy and secure attachment to the bike, without the worry of the cartridge slipping out during rides.
Compatible with 16 / 20 g threaded CO2 cartridges, with threads protruding 4 – 6.5 mm from the grip.
Specifications
- Material: CNC machined aluminium (valve head)
- Size: 10.8 x 5.6 x 2.6 cm
- Weight: 98 g
CO2 Tire Inflation Chart
| Tire size | 16-gram CO2 cartridge | 20-gram CO2 cartridge | 25-gram CO2 cartridge |
| 700C x 23 | 130 PSI | 80 PSI per half cartridge | 90 PSI per half cartridge |
| 700C x 25 | 110 PSI | 135 PSI | 150 PSI |
| 700C x 28 | 90 PSI | 110 PSI | 125 PSI |
| 700C x 35 | 60 PSI | 70 PSI | 80 PSI |
| 700C x 40 | 40 PSI | 45 PSI | 50 PSI |
| 20″ x 2.0″ | 50 PSI | 60 PSI | 70 PSI |
| 24″ x 2.0″ | 40 PSI | 50 PSI | 60 PSI |
| 26″ x 1.95″ | 30 PSI | 40 PSI | 50 PSI |
| 26″ x 2.0″ | 25 PSI | 35 PSI | 45 PSI |
| 26″ x 2.5″ | 20 PSI | 30 PSI | 40 PSI |
| 27.5″ x 2.0″ | 24 PSI | 32 PSI | 36 PSI |
| 27.5″ x 2.25″ | 22 PSI | 26 PSI | 32 PSI |
| 29″ x 2.0″ | 30 PSI | 42 PSI | 46 PSI |
| 29″ x 2.5″ | 25 PSI | 30 PSI | 35 PSI |
IMPORTANT / NO AIR SHIPPING: We can ship Co2 Cartridges ONLY via land transport. Co2 Cartridges are banned for airline transport or travel. Co2 Cartridges at higher altitudes and pressure can explode. Do not travel on flights with Co2 Cartridges. This may result in loss of valuable time and missed flights too! 🙂 – Travel Advisory Warning from Team @ Cycling Boutique!
Co2 Catridge’s surface becomes extremely cold to freezing temperatures when the Co2 can get pierced. You may use a glove, cloth, or both, etc., to hold the cartridge to prevent your fingers from freezing fast!
SKU# BM23-PO-AZC03-SET_Std
