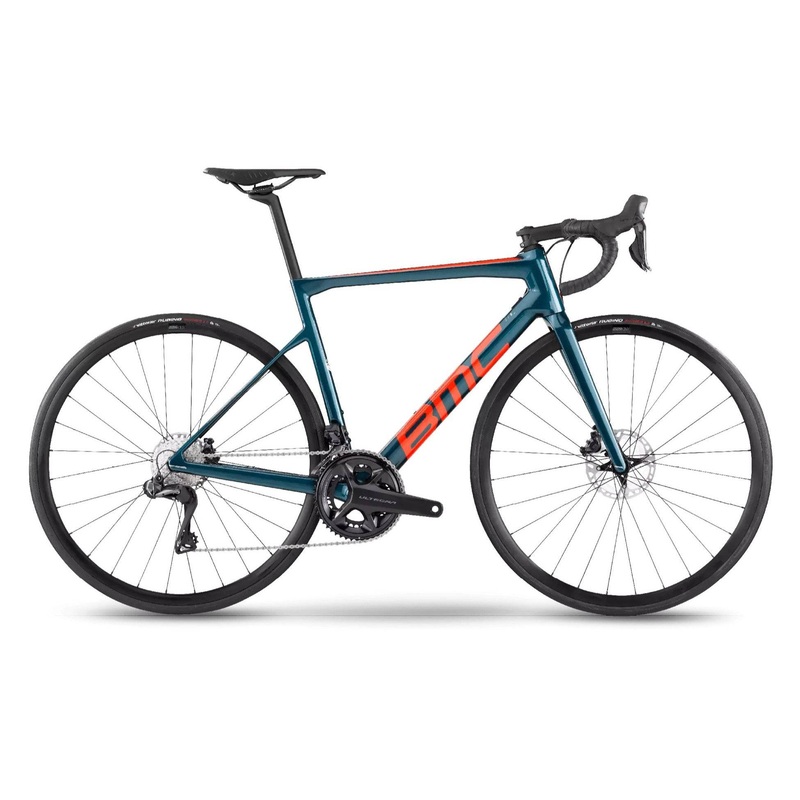

The Teammachine SLR is a legendary performance in a widely accessible package. Its Teammachine SLR Carbon frame and fork have been designed using TCC Race Technology, and offer Stealth Dropouts and internal cable routing. Equipped with Shimano Ultegra Di2 12-speed, the Teammachine SLR THREE is great value, with XRD-522 tubeless-ready wheels and a conventional aluminum bar and stem completing the build.

Accelerated Composites Evolution Technologie + (ACE+)
ACE+ not only runs through thousands of virtual prototypes using Stiffness, Weight, and Compliance as key influencers, but now includes a fourth key factor in the prototyping, Aerodynamics.

D-Shape Seatpost
The latest evolution of our signature D-Shape Seatpost: this optimized design features the minimalist saddle clamp, resulting in lower weight; while still retaining excellent aerodynamic performance and compliance.

Comfort Is Speed
The new Teammachine SLR is more compliant than ever, thanks to the latest evolution of the Tuned Compliance Concept (TCC) technology. Fine-tuning of the carbon layups, essential vertical frame, and Seatpost flex, to improve traction and control, resulting in reduced muscle fatigue.

Bottom Bracket and Torsional Stiffness
Renowned for its power transfer, the new Teammachine SLR goes one step further, with its new down tube shape and optimized carbon layup providing even greater bottom bracket shell support.

Fork Profile
An aerodynamically reshaped fork with stealth dropout design and integrated thru-axle nut show that high technical proficiency can go hand in hand with beautiful, minimalist aesthetics.

Frameset

• Frame: Teammachine SLR Carbon with Aerocore Design
• Stealth Dropout Design
• TCC Race Compliance Level
• PF86 Bottom Bracket
• Integrated Seatpost Clamp
• Flat Mount Disc
• 12x142mm Thru-Axle
• Optimized for Aerocore Bottle Cages
• Fork: Teammachine SLR Carbon
• TCC Race Compliance Level
• Internal Cable Routing
• Flat Mount Disc
• Stealth Dropout Design
• 12x100mm Thru-Axle
• 48mm Offset (Size 47-51), 43mm Offset (Size 54-61)
• Chainwheel: SHIMANO Ultegra 52-36T
• Cassette: SHIMANO Ultegra 11-34T
• Chain: SHIMANO Ultegra
• Rear Derailleur: SHIMANO Ultegra Di2
• Shifters: SHIMANO Ultegra Di2
• Brakes: SHIMANO Ultegra, RT-MT800 Rotors (160/140)
• Handlebar: BMC RAB 02, Ergo Top Shape, Compact Bend
• Stem: BMC RSM01
• Seatpost: Teammachine SLR Carbon D-Shaped Seatpost
• 15mm Offset
• Saddle: Fizik Antares R7
• Hubs: XRD-522
• Rims: XRD-522, Tubeless Ready, 25 mm
• Tires: Vittoria Rubino, 25mm
• Tire Clearance: 30mm (Measured Width)
• Weight: 7.76kg / 17.11lb
• Weight Limit: 110kg / 242lb.

Geometry
