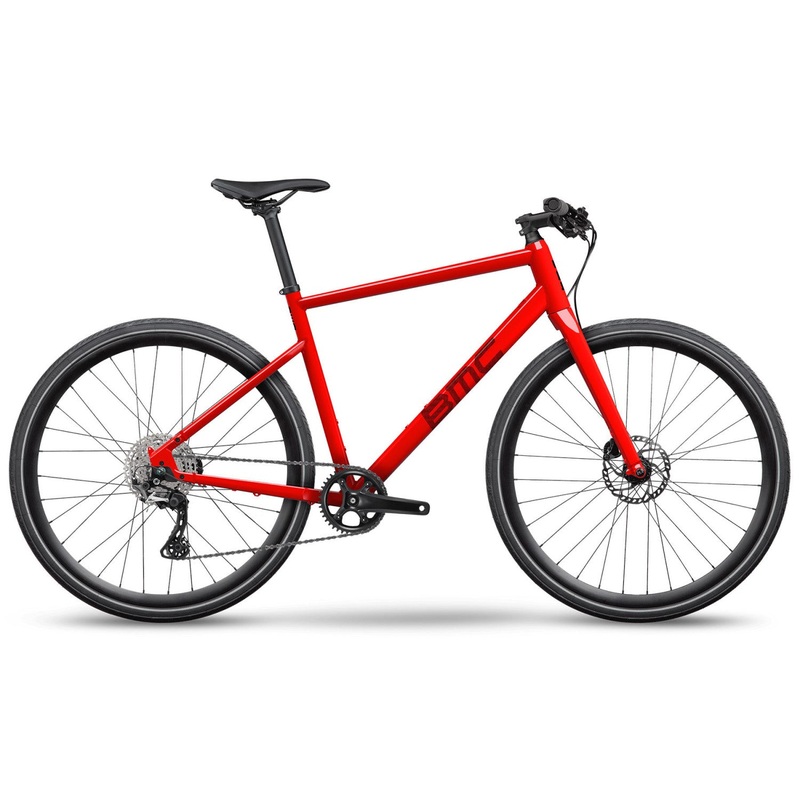

BMC Hybrid Bikes | Alpenchallenge AL FOUR, Shimano Deore 11-Speed
With its classy looks, exacting attention to detail and practical integration, the Alpenchallenge AL could only be a BMC. Its sporty, endurance-inspired, smooth welded, Premium Aluminium frame and fork have fender mounts, and the internally cabled frame is
With its classy looks, exacting attention to detail and practical integration, the Alpenchallenge AL could only be a BMC. Its sporty, endurance-inspired, smooth welded, Premium Aluminium frame and fork have fender mounts, and the internally cabled frame is powder coated for durability. Shimanos 11-speed Deore drivetrain is paired with an FSA Vero Pro crankset and Shimano MT200 disc brakes, and the wheels are PFR300, with Vittoria Randonneur – 37mm tires.
- Shimano Deore 11-Speed Drivetrain
- Shimano MT200 Brakes
- SR300 Wheels
Tech Specs
- Frame: Alpenchallenge Premium Aluminium | Smoothwelded | Powder Coat Finish | Internal Cable Routing | Flat Mount Disc | 12 x 142mm Thru-Axle
- Fork: Alpenchallenge Premium Aluminium | Fender Mounts | Flat Mount Disc | 12 x 100mm Thru-Axle
- Stem: BMC RSM 01
- Handlebar: BMC LSB 03
- Seatpost: BMC LSP 02
- Saddle: Selle Royal Vivo
- Crankset: FSA Vero Pro
- Chainrings: 40T
- Cassette: SHIMANO Deore CS-M5100
- Cassette Size: 11-42T
- Chain: SHIMANO HG601
- Rear Derailleur: SHIMANO Deore RD-M5120
- Shifters: SHIMANO Deore SL-M5100-R | Rapidfire Plus
- Gears: 1 x 11
- Bottom Bracket: BSA Threaded Bottom Bracket
- Brake Levers / Calipers: SHIMANO BL-MT200 Levers | BR-UR300 Calipers
- Rotors: SHIMANO SM-RT10
- Rotor Size (F/R): 180 / 180mm
- Rims: PFR300
- Hubs (F/R): CL-712 | RXC-142S
- Tires: Vittoria Randonneur | 37mm
- Tire Clearance: 42mm
- ASTM Classification: Level 2
- System Weight Limit: 120kg
Geometry & Size Guide
| Size | S | M | L | XL |
|---|---|---|---|---|
| Rider Height | <168 | 168-180 | 178-190 | >190 |
| Reach | 400 | 415 | 425 | 440 |
| Stack | 560 | 590 | 620 | 650 |
| Bar Width | 600 | 600 | 600 | 600 |
| BB Drop | 67 | 67 | 67 | 67 |
| Crank Length | 170 | 170 | 175 | 175 |
| Fork Length | 408 | 408 | 408 | 408 |
| Fork Rake | 45 | 45 | 45 | 45 |
| Front Center | 631 | 657 | 677 | 703 |
| Head Tube | 133 | 165 | 197 | 229 |
| Head Tube Angle | 70 | 70 | 70 | 70 |
| Rear Center | 440 | 440 | 440 | 440 |
| Seat Angle | 74 | 74 | 74 | 74 |
| Seat Tube | 480 | 510 | 540 | 555 |
| Seatpost Length | 350 | 350 | 350 | 350 |
| Seatpost Offset | 15 | 15 | 15 | 15 |
| Standover Height | 760 | 790 | 819 | 838 |
| Stem Angle | 8 | 8 | 8 | 8 |
| Stem Length | 90 | 90 | 100 | 100 |
| Top Tube | 560 | 584 | 603 | 626 |
| Trail | 75 | 75 | 75 | 75 |
| Wheelbase | 1062 | 1088 | 1109 | 1135 |
