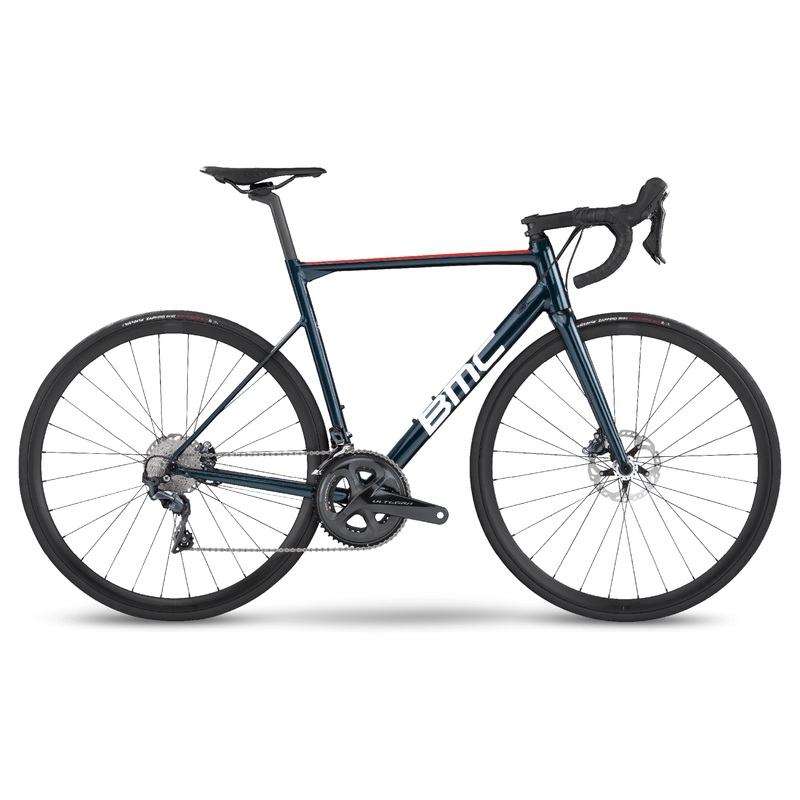

Proof that carefully crafted aluminum still offers exceptional performance, the Teammachine ALR Discs triple-butted, hydroformed, Smoothweld Premium Aluminium frame was designed with TCC Race technology. Paired with a Teammachine SLR Carbon Disc fork, the ALR has internal cable routing, a threaded bottom bracket, and a carbon D-Shape Seatpost. A Shimano Ultegra 11-speed groupset with pro-compact 52/36 crankset, SR500 wheels, and compact aluminum bar completes the build.

• Shimano Ultegra Drivetrain
• SR500 Wheels
• Integrated Cable Routing and Carbon D-Shape Seatpost.

Additional Shipping Charges Apply:
Large volume / volumetric weight Shipment – This productoriginates from our distribution center in Bangalore, India, and will be transported using the most reliable and premium courier partners to ensure reliable delivery of the product to you. Any orders received out of Bangalore will attract a nominal shipping charge, to be decided and applied by couriers, after the order is placed and when the product is ready for dispatch – by checking the volumetric weight of the shipment box. Applicable shipping charges by the transporter will be communicated and to be paid before the dispatch.

A Refined Aluminium Core
Smooth welds and size-specific, butted tubing ensure benchmark weight and stiffness.

Tuned Compliance Concept (TCC) Race
All-day race compliance, designed to keep you fresh over long days of racing and intense training. Road vibrations are filtered out for a smooth and efficient ride.

ACE Technology Fork
Teammachine ALR features a carbon fork designed with ACE technology to deliver the superior ride and first-class handling of our most-advanced racing machines.

D-Shape Seatpost and Integrated Seatclamp
Lightweight and tough, compliant and comfortable, in a beautifully sleek design.

Internal Cable Routing
Improved durability and a clean, understated look.

Specifications

• Frame
• Teammachine ALR Disc Premium Aluminium with Tuned Compliance Concept Race
• Triple-butted Hydroformed Smoothweld Aluminium
• Internal Cable Routing
• BSA Threaded Bottom Bracket
• Flat Mount Disc
• 12x142mm Thru-Axle
• Fork
• Teammachine SLR Carbon Disk with Tuned Compliance Concept Race
• Internal Cable Routing
• Flat Mount Disc
• 12x100mm Thru-Axle
• Chainwheel: SHIMANO Ultegra 52-36T
• Cassette: SHIMANO Ultegra 11-30T
• Chain: SHIMANO Ultegra
• Rear Derailleur: SHIMANO Ultegra
• Shifters: SHIMANO Ultegra
• Brakes: SHIMANO Ultegra RT800 Rotors (160/140)
• Handlebar: BMC RAB 02 Ergo Top Shape Compact Bend
• Stem: BMC RSM01
• Seatpost: Teammachine ALR Carbon D-Shaped Seatpost, 15mm Offset
• Saddle: Fizik Antares R7
• Hubs: CL-712 (F)/RXC-1425 (R) Thru Axle
• Rims: SR500 30mm
• Tires: Vittoria Zaffiro Pro 25mm
• Tire Clearance: 28mm (Measured Width)
• Weight: 8.65kg / 19.07lb
• Weight Limit: 110kg / 242lb
• ASTM Classification: Level 1

Geometry & Size Guide
