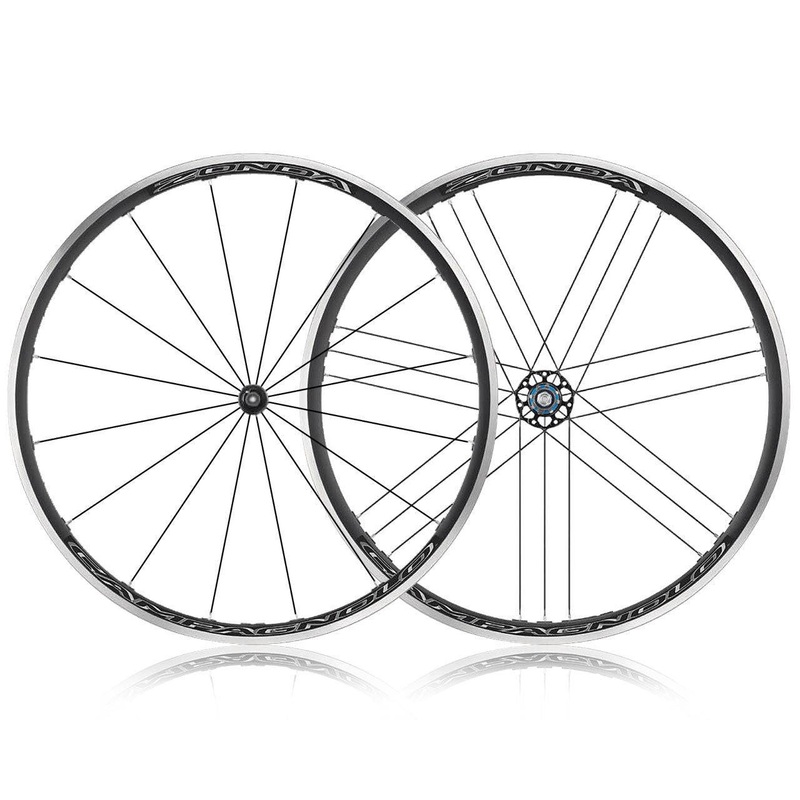

Zonda Non-Disc Brake
The ultimate alloy wheels you can find in this world, with legacy, ability to take beatings like those of road conditions around India, we at Cycling Boutique have taken this wheel for many of our epic rides. Lovely, trustable wheels which shatter your impression of what an Alloy wheel can achieve, and be confident with the unique design and cult heritage of Campagnolo!

The features of the Zonda wheel have been enhanced even further with a C17 rim that is compatible with more comfortable clincher tires. It’s also 10g lighter than the previous version.

Zonda is one of Campagnolo’s best-selling aluminum wheels. It’s packed with technological innovations that make it a highly sophisticated solution compared to what other brands offer for the same price.

A smaller hub diameter combined with the differentiated rim height (24/27mm) and the new self-locking nipples offer a front wheel that’s smooth to steer and bump-resistant: racing on this model is a safe bet.

Main Benefits

Unrivaled
One of the best-selling wheels of all time, the Zonda is an aluminum tire boasting technologies that are far more sophisticated than any other product of its kind, within this price range, on the market.

All Campagnolo’s technology has gone into these wheels

• Weight and stiffness are optimized thanks to the milled rim with differentiated height
• Aerodynamic spokes and self-locking nipples guarantee performance and reliability

Suited to all conditions

• The lightweight structure and hi-tech features of these wheels make them ideal for racing or grand Fondo cycling.
• The robustness and reliability that set the Zonda apart make it one of the best wheels for road cycling.

Main features

Momag: allows the external profile of the rim to be free of holes increases structural resistance makes rim tape unnecessary and reduces the weight of the wheel.

Milled rim differentiated rim height front (24 – 27 mm) and rear(27 – 30 mm)

DYNAMIC BALANCE

Spokes Anti-Rotation System keeps the spokes in the position of maximum aerodynamic penetration.

EXCLUSIVE MEGA-G3 SPOKE PATTERN:the perfect balance of spoke tension on both sides of the wheel. Reduces stress, increases transversal rigidity and the transmission of power to the wheel. Mega-G3 eliminates vibrations even with heavy cyclists.

Spokes with Aerodynamic Profile:

• Front: 16 spoke variable profile Aero radials in stainless steel.
• Rear: 21 spoke variable profile Aero in stainless steel with doubling on the cassette side.

Self-Locking Nipples: allow the ideal spoke tension to be maintained at length, eliminating friction on the rim. All this translates into constant high performance throughout the life of the product.

Rear Hub with Mega-G3 Oversized Flange: increases the torsional stiffness, increasing reactivity at each change of pace of the cyclist.

Aluminum Hub Body: provides a high degree of lateral stiffness.

Aluminum Axle: low weight, high stiffness.

Differentiated Hub Diameter Front and Rear: optimized for structural integrity and performance. A small front hub aids in aerodynamic efficiency.

New Adjusting Lock Ring with Micro Setting: for an accurate adjustment of the hub that prevents the creation of the play.

Specifications

Spokes

• Spoke count:16 variable-section stainless-steel radial aero spokes (front) and 21 variable-section stainless-steel aero spokes (rear) with a 2:1 spoke ratio on the drive side
• RDB
• Steel spokes with aerodynamic profile
• Anty-Rotation System
• Self-locking nipples

Versions and Weights

• Wheel for clincher tire: 1540 g

Compatibility

• FH Body Type: Shimano
• Campagnolo FH Body 9/10/11/12
• FH Body HG 9/10/11

HUB

• Aluminium hub with black finish
• Steel bearings
• Hub edge: 100mm (front), 130mm (rear)
• Oversize flange
• Cup-and-cone bearing system

RIM

• Profile height: 24-27/27-30 mm
• Rim width: 22 mm
• Rim material:: Alluminium
• Graphic colors: Bright Label

Tires

• Wheel for clincher tire

Assembly

• The Zonda wheel is entirely hand-assembled by a specialized Campagnolo technician and is checked in every tiny detail with electronic instrumentation. This ensures maximum performance and reliability for all Campagnolo wheels.

Comes With

• User manual
• Quick Release wheel locks

Accessories

• No accessories provided

Prices

• The price refers to the suggested retail price
• The price refers to the model in its cheapest configuration (ex. hub, type of tires)
• The price refers both to the product and to all package

Clincher

• 1540 g

The weight refers to a couple of wheels and does not include the quick release, the rim tape, the identity card, and the hub caps.

Additional Shipping Charges Apply:
Large volume / volumetric weight Shipment – This productoriginates from our distribution center in Bangalore, India, and will be transported using the most reliable and premium courier partners to ensure reliable delivery of the product to you. Any orders received out of Bangalore will attract a nominal shipping charge, to be decided and applied by couriers, after the order is placed and when the product is ready for dispatch – by checking the volumetric weight of the shipment box. Applicable shipping charges by the transporter will be communicated and to be paid before the dispatch.

Technologies

DYNAMIC BALANCE

MOMAG

A technology that offers several advantages to the structural integrity of the wheel as well as eliminating the need for rim tape. The name derives from the Mounting Magnet system, shortened to MoMag.

CAMPAGNOLO WHEEL IDENTIFICATION CARD
