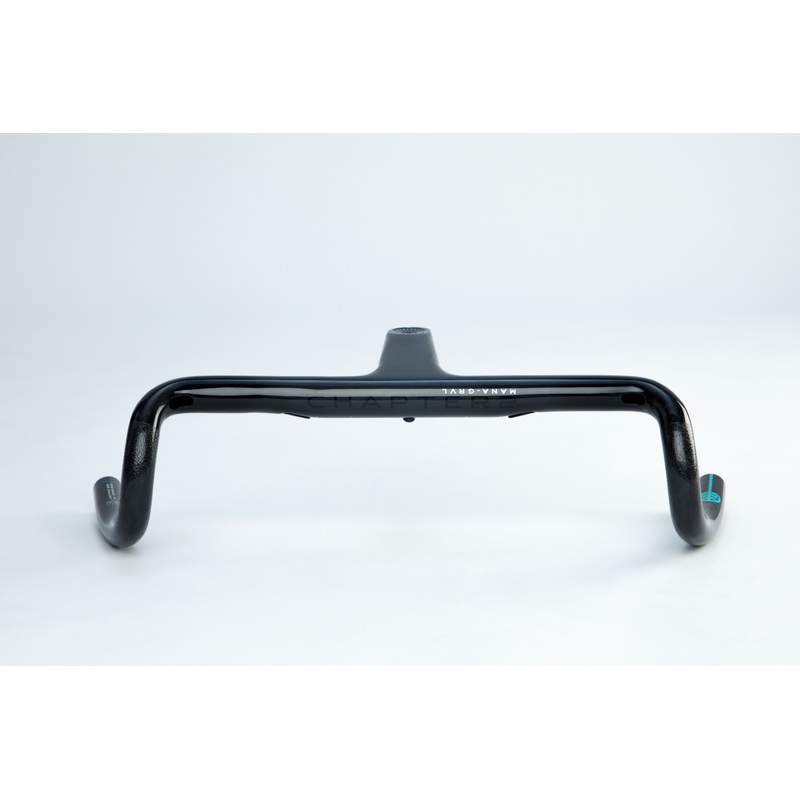

The MANA-GRVL has been designed for the AO, our Gravel/Adventure frameset. However, it can also be used with any frame with a 1-1/8″ fork steerer, such as the RERE, TERE, and HURU, where the cables and hoses enter from the underside of the bar.

The MANA-GRVL’s one-piece bar and stem construction features a 12 flare for tackling any gravel adventure you throw at it.

Made 100% from TORAY Carbon and tested to EN ISO 4210:2014. The careful use of specific carbon lay-ups made in Japan creates just the right blend of stiffness for accurate and predictable steering yet enough “give” to take the sting out of uneven road surfaces.

The MANA-GRVL is available in 6 size combinations to dial in your desired position with effective stem lengths from 80-130mm and widths from 469-525mm.

Finally, with the adoption of trigger-happy electronic shifting and use of out-front GPS devices for those Strava moments, the CHAPTER2 Bar + Stem combo comes ready to install Shimano EW-RS910 bar end mounted Junction Box and Barfly or K-Edge style GPS mounts respectively.

Specifications

• Carbon: Toray Uni-Directional Carbon
• Sizes (mm): Refer to the chart below
• Weight (g): 330g (100x491mm)
• Spacers: 3x10mm, 3x5mm & 1x7mm (Curved)
• Steerer: 1-1/8″
• Safety Standard: EN ISO 4210:2014
• GPS/Computer Mount not included
• We have tested and can recommend the following suppliers (select out front/integrated bar/stem type mount):
• K-Edge
• Barfly
• Alpitude

What’s Included

• Integrated Stem/Bar
• C2 Aluminium Headset Top Cap with bolt
• 3 x 10mm Spacers
• 3 x 5mm Spacer
• 1 x 7mm Curved Lower Spacer
• 1 x TERE/RERE/HURU/AO Headset cover

Torque Specs

• Stem: 6Nm
• Shift Lever (by others): Refer to Shift Lever Manufacturer for Torque requirements.

Size Guide

SKU#

• 100040HBZZZZ1_90mm
• 100040HBZZZZ1_80mm
• 100040HBZZZZ1_130mm
• 100040HBZZZZ1_120mm
• 100040HBZZZZ1_110mm
• 100040HBZZZZ1_100mm

*Note: Images are for representational purposes only. Actual size/packaging varies with product type/size.
