The FR Road Bike
If you’re looking for the best-handling, fastest-climbing, smoothest-riding road racing bike in the world, you’ve found it. The FR represents one-half of the ideal union between bike and rider. Free of excess, it was painstakingly and obsessively honed for the needs of the most committed road cyclists to win battles of will, attrition, and tactics on any racecourse. Starting with a clean sheet of paper, our engineers designed the FR from the ground up, resulting in a pure road bike with impeccable handling and a precision-tuned chassis. This ensures riders are fresh for a finish line sprint after a long day in the saddle. Lighter and stiffer than any other bike that’s emerged from our history of innovation, the FR climbs like an angel and descends like a dream. When you strip away unnecessary indulgences and gimmicks, all that is left is pure performance embodied in a bike that is an extension of you.

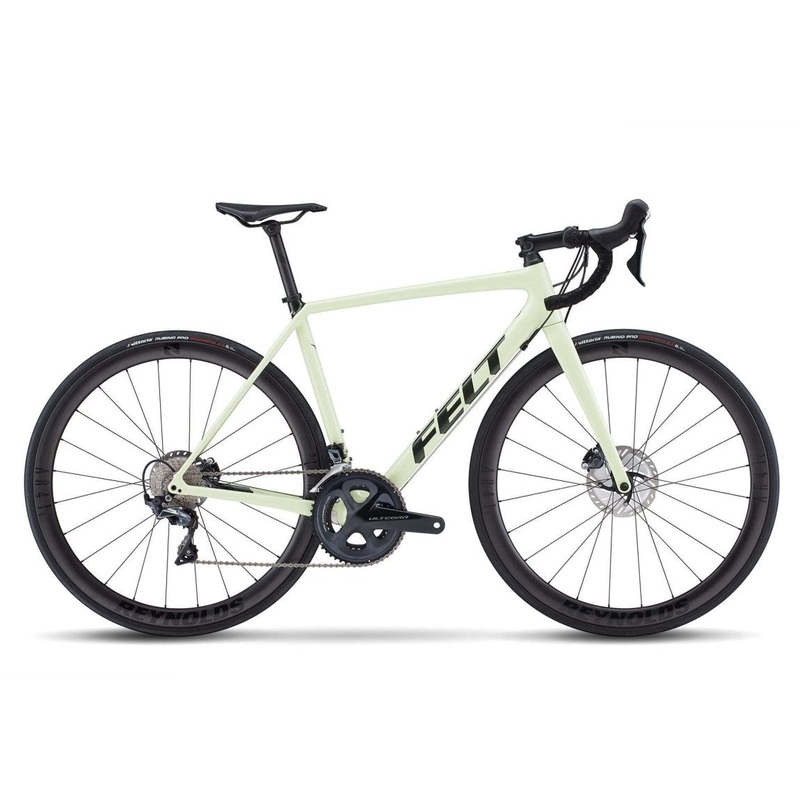

FR | Advanced | Ultegra
Lightweight for the climbs, stiff for the sprints, and handles like a dream for flying down the mountain. It is built with mechanical shifting for a uniquely tactile riding experience.

• Hydraulic disc brakes
• Shimano Ultegra mechanical groupset
• Reynolds AR41 carbon wheels

FR Features

Performance Honed Chassis
Every tube shape on the FR was meticulously theorized, modeled, and tested to achieve the optimal performance characteristics demanded by cycling’s top athletes and the ride quality revered by riders worldwide. From its asymmetrical chainstays crafted to precisely balance the rider’s pedaling forces with the inherent effects of a drivetrain to its rear triangle and fork developed to mitigate road chatter to reduce rider fatigue, every millimeter of the FR frameset was finely sculpted in excruciating detail. Featuring the most straight layups in our history and TeXtreme carbon fiber, the FRD, Advanced, and Performance iterations of the FR set a new standard for lightweight road bikes. The aluminum version is no slouch, featuring a SuperLite aluminum frame paired with an Advanced-level carbon fork. The FR embodies the following function more than any other road bike in Felt’s history.

Disc Brakes & Thru-Axles
Disc brakes are the new standard in road bike technology, providing increased stopping power, enhanced modulation, and better performance in adverse weather conditions and ideal riding conditions compared to rim brakes. For racers and performance-focused riders, disc brakes also improve handling and overall control, which allows you to carry speed through turns for a more fluid riding experience. Disc brakes provide numerous benefits over traditional rim caliper brakes regardless of age, fitness level, body size, or even where you ride. Available on select FR models.

Modern Road Race Geometry
Felt’s flagship road race bike has always been defined by an aggressive geometry that exceeds the demands of the world’s fastest and most technically demanding racecourses. Head and seat angles honed from decades of feedback from the world’s top professional racers ensure that the FR possesses the most intuitive handling available while at the same time providing a stable ride quality. And because an efficient rider is a powerful rider, the FR’s geometry is optimized to suit the fit needs of nearly all riders. This empowers every rider to achieve their most efficient position without wasting watts.

Technical Specifications

• Version: FR | 5
• Series: Global
• Model: FR | Advanced | Ultegra
• Price: $ 4,549
• Finish: Glow Green
• Model Code: FB-21A-FRX3-GG-FA
• Model: # M3 BBJAA03
• Sizes: 7 | 43, 47, 51, 54, 56, 58, 61cm
• Frame: FeltRoad 3.0 | UHC Advanced + TeXtreme carbon fiber
• Frame Technologies: MMC / InsideOut
• Bottom Bracket Type: Press-Fit | BB386
• Brake Type, Rear: Disc, Flat Mount | 140mm minimum
• Derailleur Hanger Type, Front: Brazed-On | integrated backup plate, non-replaceable, aluminum
• Derailleur Hanger Type, Rear: Standard Mount | TA 12×142 road, replaceable, aluminum
• Head-Tube Type: Felt ControlTaper | 43, 47cm: 1.125″ / 51, 54cm: 1.125-1.25″ / 56, 58, 61cm: 1.125-1.5″
• Protector Type: Felt ChainPlate for chain suck protection / Clear vinyl for chain slap protection
• Routing Type: Convertible | internal for electronic or external for mechanical
• Seat Post / Clamp Type: Standard | 27.2mm post, 30.6mm clamp / 6061 aluminum, steel bolt & nut-bar
• Wheel Type: 700c
• Tire Max (clearance): 28mm (4mm)
• Fork: Felt Road 3.0 | UHC Advanced + TeXtreme carbon fiber
• Headset: 43, 47cm: IS (IS-2) / 51, 54cm: IS (NO.44) / 56, 58, 61cm: IS (NO.42)
• Axle, Front: TA 12×100
• Axle, Rear: TA 12×142
• Fork Technologies: Monocoque construction / Integrated crown race
• Brake Type, Front: Disc, Flat Mount | 140mm minimum
• Fork Offset: 43, 47cm: 52mm / 51, 54cm: 47mm / 56, 58, 61cm: 43mm
• Headset Specification
• Top Cap: Felt carbon fiber
• Top Cover: Felt VariableHeight (20mm PC, 4.5mm aluminum)
• Bearings: FSA-integrated sealed cartridge
• Spacers: FSA nylon (10mm, 2x5mm)
• Compression Device: Felt for carbon steerer tube
• Crown Race: fork integrated
• Axle, Front Specification: Devox AxleTA 128.5 | 123mm + 5.5mm head, M12 x 1.5P x 16mm, Switch lever compatible
• Axle, Rear Specification: Devox AxleTA 170-7 L | 163mm + 7mm head, M12 x P1.0 x 19mm for Syntace X-12, with SL02 Switch hollow lever
• Speed: 2×11-speed
• Shifters: Shimano Ultegra R8020
• Derailleur, Front: Shimano Ultegra R8000, braze-on
• Derailleur, Rear: Shimano Ultegra R8000, short cage
• Crank: Shimano Ultegra R8000, 52/36T
• Bottom Bracket: Token Ninja Lite, BB386 for Shimano (24mm)
• Cassette: Shimano Ultegra R8000, 11-30T
• Chain: Shimano Ultegra HG701
• Crank Length: 43, 47cm: 165mm / 51cm: 170mm / 54, 56cm: 172.5mm / 58, 61cm: 175mm
• Brake Calipers: Shimano Ultegra R8070, hydraulic disc, flat mount
• Brake Rotors: Shimano Ultegra RT800, Center Lock, 160/140mm
• Wheels: Reynolds AR41 DB Custom, Shimano
• Tires: Vittoria Rubino Pro IV, 700x25c
• Tire Compatibility: Tubeless Ready
• Rims: Carbon
• Handlebar: Devox DBar.C1
• Stem: Devox StemR.A1
• Grips / Tape: Felt VelvetGel tape with 3M reflective base and Felt Bubble-Tech F-Wing bar end plugs
• Handlebar Clamp Diameter: 31.8mm
• Handlebar Drop: 125mm
• Handlebar Reach: 65mm
• Handlebar Width: 43, 47cm: 38cm / 51cm: 40cm / 54 – 56cm: 42cm / 58 – 61cm: 44cm
• Stem Clamp Diameter: 31.8mm
• Stem Angle: -7
• Stem Length: 43, 47cm: 80mm / 51cm: 90mm / 54, 56cm: 100mm / 58cm: 110mm / 61cm: 120mm
• Seatpost: Devox Post.C2 Cap
• Seatpost Offset: 0mm
• Seatpost Length: 43, 47, 51cm: 294mm / 54, 56, 58, 61cm: 344mm
• Saddle: Prologo Dimension 143 T4.0
• Extras: Shimano hose fitting kit (2x olives and connector inserts) / Reynolds tubeless valve stems (2x55mm) / Carbon assembly paste
• Weight: 17.01 lb, 7.73 kg
• Weight Disclaimer: The most accurate way to determine a product’s weight is to have your local dealer weigh it. Because we understand that weight is an important metric, we strive to list it when possible. When recorded, weight is based on a sample in a specific size and with all items, as shown in the photo. It is not an exact indication of what your bike or frame will weigh, as there are tolerances in many variables involved (size, finish, hardware, components, and accessories). Felt continues to be an industry leader in weight and performance.
• Specification Disclaimer: Specifications are subject to change without notice.

Size Guide

Geometry

FR Disc (A-3.0)
