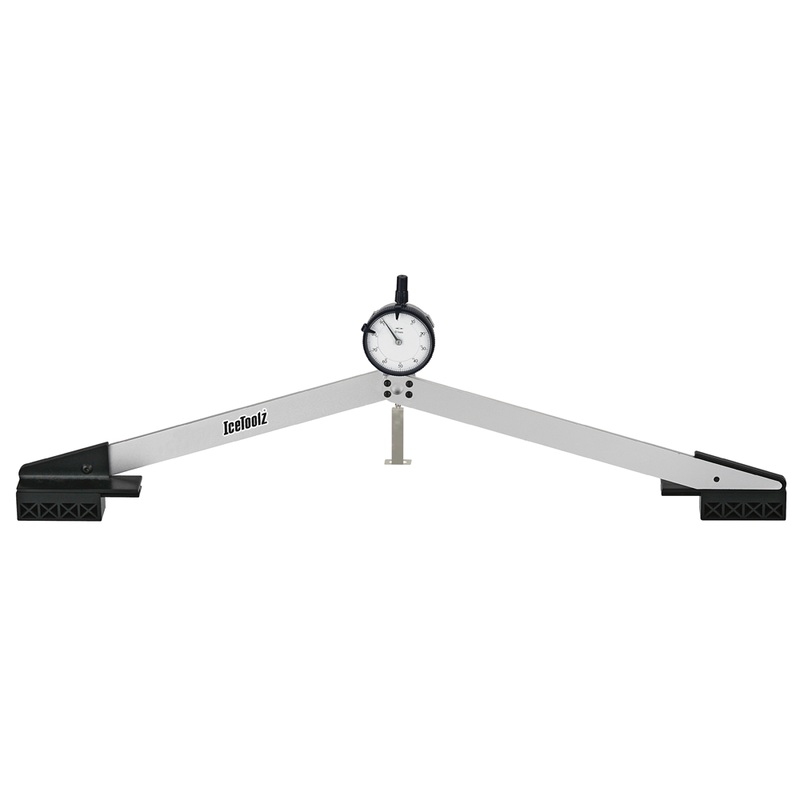

IceToolz rim hub aligner with micrometer for precise work
This IceToolz rim hub aligner is also called a wheel arch. This hub aligner is suitable for hubs with an installation width of 100mm, 135mm and 150mm and works very well. The rim size must be between 16 and 32 for this hub aligner. The micrometer moves as the deviation is greater. This makes it clear at a glance whether the hub is properly aligned in relation to the rim. IceToolz article number of this hub aligner is E313.

IceToolz wheel straightener, hub aligner with micrometer, for precise work After determining the installation width, the correct adapter can be mounted on the hub aligner. By placing the hub aligner on one of the sides of the wheel, the gauge on the hub aligner can be calibrated. Then place the hub aligner on the other side and the deviation is immediately apparent. If it deviates in such a way that the pointer of the hub aligner moves outside the set points, it is necessary to make a correction.

Tech Specs

• Scales to 0.1mm tolerance
• The black tolerance tabs are designed to assign a specific range of acceptable tolerance quickly
• For rim size 16″~31″
• Product Dimensions: 61 x 16 x 4.1cm
• Weight: 0.463kg
• Color: Silver
• Material: Plastic, Alumiunm, Steel

SKU# E313
