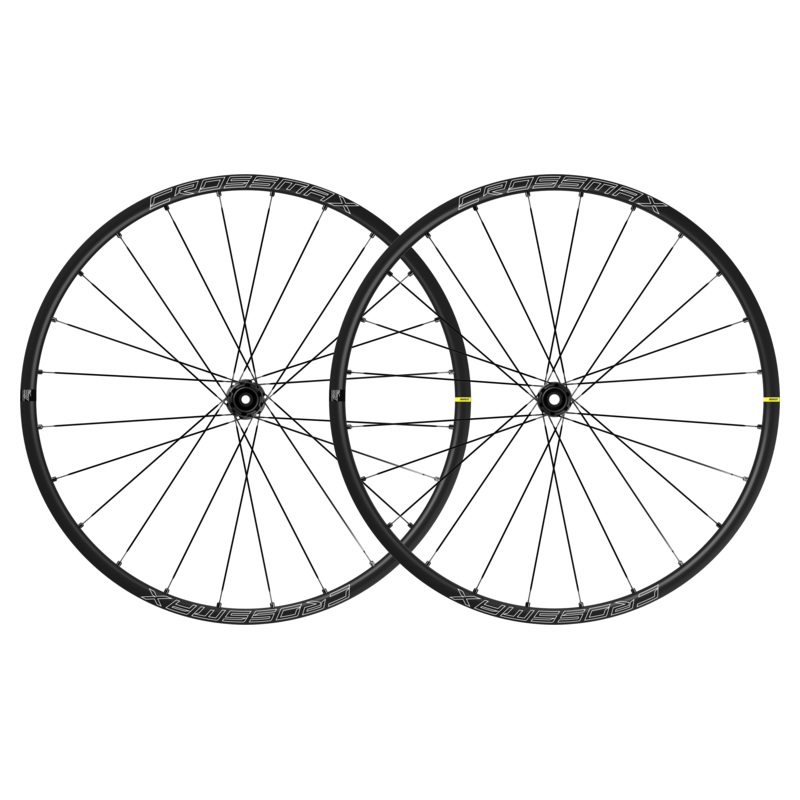

CROSSMAX SL 29
The Crossmax SL is designed to be our most advanced alloy cross-country wheel ever. For anyone looking to burn up the XC course, this lightweight, efficient 29 wheel offers the worlds easiest tubeless system at an attainable price.

• Weight: 1695 grams (Pair 29″)
• Weight: 785 grams (Front 29″)
• Weight: 910 grams (Rear 29″)

The name Crossmax has a long history in the world of XC riding and racing, and the new Crossmax SL lives up to that legacy. It offers many of our proven Mavic technologies at an attainable price. Weighing just 1700g, its a true all-rounder and the best alloy XC wheel in its category.

The rims are made with our patented Fore technology featuring a fully sealed upper rim bridge that eliminates the need for rim tape. That saves 30 grams per wheel, not to mention the hassle of using tape to set up tubeless tires. The rim has a 25mm internal width with a durable hookless profile, and our Black Shield technology gives them a distinctive, modern look that protects against scratches and abrasions.

We use 24 straight-pull spokes (same spoke length throughout) for a strong connection between the rim and hub and a perfect balance between efficiency and durability. Special machining on the hub ensures that the spoke head is secured but can still travel in the slot. This allows the wheel to absorb impacts from trail obstacles. Our Instant Drive 360 freewheel coupled with QRM Auto bearing technology provides fast engagement and added durability. The Crossmax SL 29 is compatible with Shimano HG9, Micro Spline, and SRAM XD driver bodies. Its available with 6-bolt or center lock brake rotors in 29 only and is compatible with a 15×110 front axle and 12×148 rear. It comes with valves, replacement spokes, and accessories.

KEY BENEFITS

Faster accelerating and climbing capabilities
Fore technology sealed rim design minimizes weight and increases strength. Eliminating rim tape saves 30g per rim. Ultra-reliable ID360 freewheel system for instant engagement.

Increased traction and durability
25mm wide hookless rim profile optimized for lower tire pressures, resulting in improved grip in all conditions. Optimized for modern XC tubeless tires from 2.1 to 2.30″. Black Shield treatment protects rims against impacts and scratches.

The most user-friendly tubeless system
Fore technology fully sealed rim with no rim tape makes it easy to mount and change tubeless tires. Leaving the upper rim bridge intact boosts the stiffness and durability of the rim.

SPECIFICATIONS

Rims

• Material: Maxtal
• Material: S6000 Aluminum
• Tire: UST Tubeless and tubetype
• Internal width: 25 mm
• ETRTO size 29″: 622x25TSS
• Hookless profile
• Black Shield treatment (protects your rim against impacts and scratches)
• Asymmetrical rim design
• Fore tapeless tubeless technology
• SUP welding technology

Spokes

• Material: steel
• Shape: straight pull, flat, double-butted
• Nipples: Fore integrated aluminum
• Count: 24 front and rear
• Lacing: front and rear crossed 2, contactless

Hubs

• Hub available with 6-bolt or Center Lock brake rotors
• Axles: Front 15X110 Boost; Rear 12X148 Boost
• Infinity hubs
• Instant Drive 360 freewheel technology

Versions

• Disc standard: 6 Bolts or Center Lock
• Hub width: Boost only (front 110, rear 148)
• Freewheel: SRAM XD, Shimano HG9, Shimano Micro-Spline

Compatibility

• Freewheel: Shimano HG9, XD or Micro Spline
• Rear-axle: 12×148 Boost thru-axle
• Front axle: 15×110 Boost thru-axle

Compatible Adapters and freewheel bodies

• Boost: Torque Caps (LV2374400)
• ID360 Shimano HG9 alloy freewheel body (LV3780100)
• ID360 Shimano Micro Spline alloy freewheel body (LV3990100)
• ID360 Sram XD freewheel body (LV3740100)

Intended use

• ASTM CATEGORY 3: CROSS COUNTRY
• For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels doesn’t exceed 120kg, bike included
• Recommended tire sizes: 50mm to 76mm (2.0″ to 3.0″)

Delivered with

• UST valve and accessories
• Multifonction adjustment wrench (delivered with rear wheel)
• 2 replacement spokes with each wheel
• Fore adjustment wrench.

KEY TECHNOLOGIES

UST Tubeless Technology
Traction and control Universal Standard for Tubeless. Ready to ride tubeless system. The UST concept improves traction, control, and comfort whilst reducing inertia and flats.

Instant Drive 360 Freewheel Technology
The new Instant Drive 360 freewheel system is super light and efficient. A large contactless rubber seal provides low friction, while a wide array of end caps makes it super versatile.

QRM Auto bearing preload Technology
Qualit de Roulements Mavic Auto Our latest innovation. Those cartridge bearings are of course double sealed with C3 internal clearance. Their preload is automatically adjusted to guarantee a perfect spin with no play in the long run.

Fore Tapeless Tubeless Technology
Stiffer and stronger Instead of being drilled, the lower rim bridge is pushed up on the inside, then threaded to enable the spoke nipples to be directly screwed in it, leaving the upper rim bridge intact.

SUP Welding Technology
Stronger and smoother joint Soud Usin Process. After bending, the rim joint is arc welded. The welded seam is then milled for a smooth finish.

Black Shield treatment (protects your rim against impacts and scratches)
New MTB rim treatment. 2x superior lifetime against rock impacts and scratches
