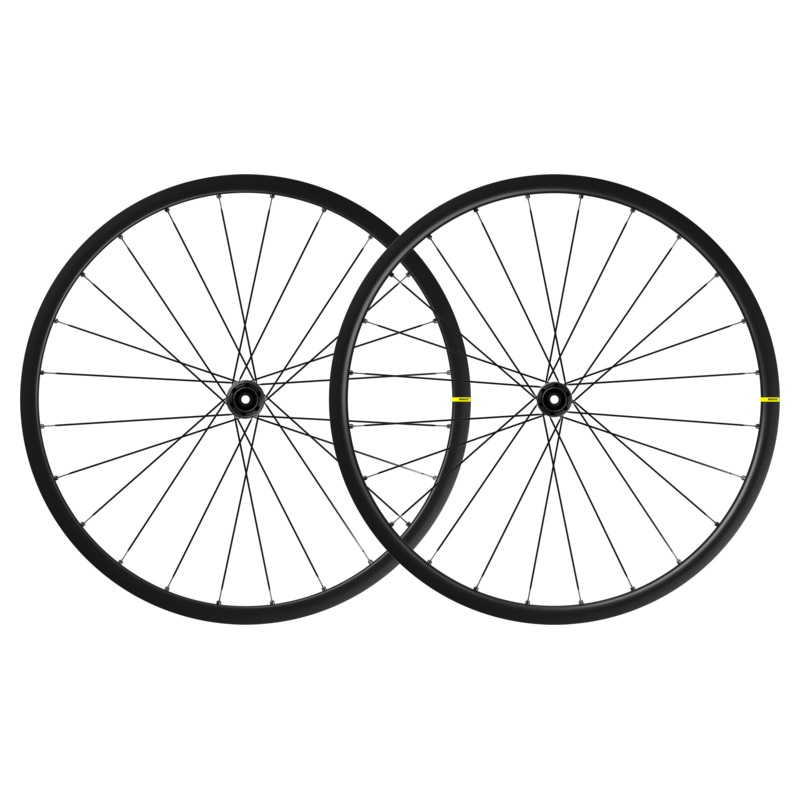

KSYRIUM S DISC
Trusted Mavic technologies and design. Established in 1889. @Mavic doesn’t need an introduction. Being the official neutral support service of @letourdefrance course and when it comes to wheels, the world listens and rides on the legendary @Mavic 🙂

Added to our ever-expanding exotic collection of wheels are the newest epic grade and value for money Ksyrium S Disc Series.

• Weight: 1670 grams (Pair)
• Weight: 750 grams (Front)
• Weight: 920 grams (Rear)

This lightweight aluminium wheelset is a no-brainer for anybody looking to make an easy upgrade from OEM wheels. The Ksyrium S Disc can significantly boost any bike’s performance and is an easy entry point to Mavic quality that doesn’t take any shortcuts.

The Ksyrium S Disc is 40g lighter than the former Ksyrium UST Disc while also being stronger and laterally stiffer. Stiffness is optimized using Fore technology. The upper bridge remains undrilled, optimizing strength and rigidity, and it doesnt require the use of rim tape, which saves another 30g per wheel. The rim beds new shape makes it easier than ever to mount and remove tires, and our UST Tubeless technology improves rolling resistance and grip while reducing the risk of punctures. Those rims are made in France, in our aluminum rim factory.

Our new Infinity hub platform optimizes stiffness and power transfer with highly controlled spoke tension, while our Instant Drive 360 freewheel coupled with our automatic bearing preload adjustment (QRM Auto) delivers fast engagement and durability. The Ksyrium S Disc doesnt just ride fast, it looks fast too. Matte-painted hubs, invisible rim welding, and deep black spokes give this wheelset a premium look that stands out from the crowd. Engineered specifically for disc brakes, it’s compatible with a 12×100 axle up front, and 12×142 rear, and can convert to Quick Release with supplied adapters. It’s available for Shimano and Sram XD-Road cassettes and can convert to Campagnolo with an optional driver body. For Center Lock disc rotors only.

KEY BENEFITS

Lightweight and durable for everyday performance
Rim weighs only 430g No rim tape is needed, saving 60g over a traditional wheelset Flat, lightweight spokes, and ID360 freewheel technology.

Laterally stiff and vertically compliant for a more dynamic ride
Fore technology keeps the rim upper bridge solid to make the 19mm wide rim stiffer New Infinity hub plaform: stiff axle, durable bearings, and new hub design.

Improved UST Road delivers more speed, comfort, and control in an easy to use tubeless system
No tubes mean less friction, better efficiency, and grip, reduced risk of punctures New rim bed shape makes it easier to mount and change tires Fore drilling technology doesn’t require the use of rim tape.

SPECIFICATIONS

Rims

• Material: Maxtal
• Height: 22 mm
• Disc brake specific profile
• Tire: UST Tubeless and tubetype
• Internal width: 19 mm
• ETRTO size: 622x19TC
• Fore tapeless tubeless technology
• UST tubeless technology
• SUP welding technology

Spokes

• Material: steel
• Shape: straight pull, flat, double-butted
• Nipples: Fore integrated aluminum
• Count: 24 front and rear
• Lacing: front and rear crossed 2, contactless

Hubs

• Front and rear bodies: aluminum
• Axle material: aluminum
• Front: Quick release and 12×100 through-axle compatible
• Rear: Quick Release, 12×142 and 12×135 compatible
• Infinity hubs
• Instant Drive 360 freewheel technology
• QRM Auto bearing preload technology

Versions

• Disc standard: Center Lock only
• Freewheel: Shimano/Sram or XD-Road

Compatibility

• Freewheel: Shimano/Sram, convertible to Campagnolo ED11, N3W, and XD-R with optional driver bodies
• Front axle: 12×100 thru-axle, easily convertible to quick release with included adapters. Not compatible with 15mm through axles.
• Rear-axle: 12mm thru-axle, convertible to Quick Release with included adapters

Compatible Adapters and freewheel bodies

• 12 to 9mm front adapter for quick release (LV2680300)
• 12mm front hub cap ([LV2680500] – Delivered with the wheel)
• 12×142 rear axle adapters ([LV2510700] – Delivered with the wheel)
• 12 to 9mm rear adapter for quick release ([LV2510800] – Delivered with the wheel)
• ID360 Shimano / Sram Light freewheel body (LV3850100)
• ID360 Campagnolo freewheel body (LV3440100)
• ID360 XD-R freewheel body (LV2580100)
• ID360 Shimano / Sram freewheel body ([LV3430100] – Delivered on the wheel) Intended use

ASTM CATEGORY 2 :

• road and offroad with jumps less than 15cm
• For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels doesn’t exceed 120kg, bike included
• Recommended tire sizes: 25 to 32 mm
• Max. Pressure: see an indication on wheel and tire. If they differ, use the lowest of the 2
• Delivered with
• Front QR adapters.

Rear QR adapters for Instant Drive 360

UST valve and accessories User guide

KEY TECHNOLOGIES

UST Tubeless Technology
Traction and control Universal Standard for Tubeless. Ready to ride tubeless system. The UST concept improves traction, control, and comfort whilst reducing inertia and flats.

Instant Drive 360 Freewheel Technology
The new Instant Drive 360 freewheel system is super light and efficient. A large contactless rubber seal provides low friction, while a wide array of end caps makes it super versatile.

QRM Auto bearing preload Technology
Qualit de Roulements Mavic Auto Our latest innovation. Those cartridge bearings are of course double sealed with C3 internal clearance. Their preload is automatically adjusted to guarantee a perfect spin with no play in the long run.

Maxtal Aluminum Alloy
Light and strong Exclusive to Mavic, this specific aluminum alloy offers a higher strength to weight ratio than conventional 6106 alloys.

Fore Tapeless Tubeless Technology
Stiffer and stronger Instead of being drilled, the lower rim bridge is pushed up on the inside, then threaded to enable the spoke nipples to be directly screwed in it, leaving the upper rim bridge intact.

SUP Welding Technology
Stronger and smoother joint Soud Usin Process. After bending, the rim joint is arc welded. The welded seam is then milled for a smooth finish.

SKU#P1326155

Reach our technical support,andour top-notch engineering minds will be happy to help with anything from state of the art wheel building to quality lifestyle guidnaces on cycling.
