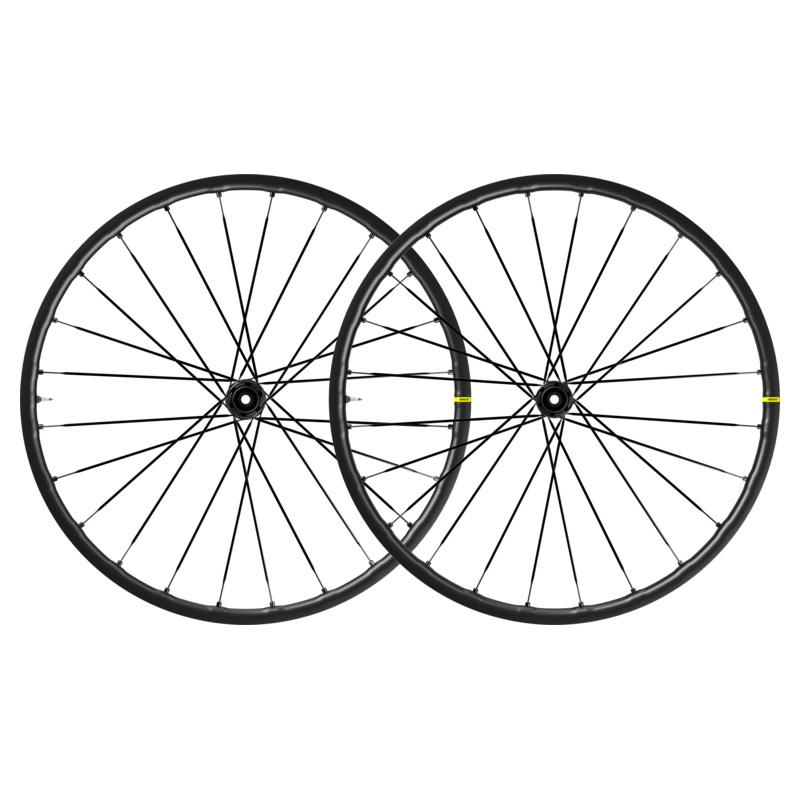

ALLROAD SL ROAD+ 650B
This new Road+ Allroad wheel is made with wider rims and a 650B diameter to help you tackle the roughest roads, pav, gravel, or dirt with speed, control, and dynamic ride quality.

• Weight: 1555 grams (Pair)
• Weight: 723 grams (Front)
• Weight: 832 grams (Rear)

Riders seeking a strong, durable, and lightweight wheelset for rugged road and gravel adventures will find this 650B diameter wheel with wider rims a perfect choice. It makes no compromises on responsiveness, durability, and ease of use.

The lightweight aluminum rims feature ISM4D technology, which strategically removes material from the rim where its not needed but keeps it around the spokes, where tension is applied. Double-butted spokes further reduce weight and make the wheel feel more responsive. The spokeshave an aero elliptical shape that can save 5 watts of energy while maintaining your speed. Super-wide rims (25mm internal) are compatible with tubeless tires up to 64mm to absorb road shocks and vibrations. You get 5cm of tire travel to cushion your ride, and the smaller-diameter rims allow you to retain the agile handling you want with a drop-bar bike.

Our UST system has been improved with a new rim bed shape that makes it easier than ever to install and change tires. Fore technology attaches the spokes to the rim without the need to drill the upper rim bed, so no tape is required. No hassles, no added weight. Our new Infinity hub platform optimizes spoke lacing with highly controlled tension for maximum power transfer, and the Instant Drive 360 freewheel, coupled with our automatic bearing preload adjustment (QRM Auto), provides fast engagement, stiffness, and added durability. The wheels use center lock brake rotors and are available with Shimano or SRAM XD-Road driver bodies and can convert to Campagnolo with an optional driver body. The front hub is a 12mm thru-axle that can convert to 15mm or quick release. The rear is a 12×142 and can also convert to quick release.

KEY BENEFITS

Traction, rolling efficiency, and confidence on all types of terrain
Wider 650B rims let you run larger, high-volume tires and still maintain the responsive handling of a normal road bike 5cm of plush tire travel improves traction and comfort, prevents pinch flats, and lets you dial in the perfect tire pressure for the terrain UST Tubeless compatibility for lower rolling resistance

Superlight and durable
ISM4D rim is only 440g Patented lightweight aero spokes Automatic bearing preload (QRM Auto) requires no adjustment and guarantees long-term durability Fore drilling doesn’t require the use of rim tape – 30g saved per wheel

Laterally stiff and vertically compliant for a dynamic ride quality
Fore technology keeps the rim upper bridge solid to make the rim stiffer 17mm axle and new hub design ID360 freewheel technology is 12mm compatible, convertible to quick release (15mm axle option through-axle replacement).

SPECIFICATIONS

Rims

• Material: Maxtal
• Height: 22 mm
• Disc brake specific profile
• Weight reduction: ISM 4D
• Tire: UST Tubeless and tubetype
• Internal width: 25 mm
• ETRTO size : 584x25TSS Road
• Hookless profile
• Fore
• UST
• SUP

Spokes

• Material: steel
• Shape: straight pull, elliptical aero, double-butted (patented)
• Nipples: Fore integrated aluminum
• Count: 24 front and rear
• Lacing: front and rear crossed 2, contactless

Hubs

• Front and rear bodies: aluminum
• Axle material: aluminum
• Front: Quick release, 12×100 and 15×100 through-axle compatible
• Rear: Quick Release, 12×142 and 12×135 compatible
• Infinity Hub
• Instant Drive 360
• QRM Auto

Versions

• Disc standard: Center Lock (R) only
• Freewheel: Shimano/Sram or XD-Road

Compatibility

• Freewheel: Shimano/Sram, convertible to Campagnolo and XD-R with optional driver bodies
• Front axle: 12mm thru-axle, easily convertible to quick release with included adapters. Convertible to 15mm with complete axle replacement
• Rear axle: 12mm thru-axle, convertible to Quick Release with optional adapters

Compatible Adapters and freewheel bodies

• 12 to 9mm front adapter for quick release (LV2680300)
• 15mm axle (LV2373500)
• 15mm axle (LVXXXXXX)
• 12 to 9mm rear adapter for quick release ([LV2510800]
• ID360 Shimano / Sram Light freewheel body (LV3850100)
• ID360 Campagnolo freewheel body (LV3440100)
• ID360 XD-R freewheel body (LV2580100)
• ID360 Shimano / Sram freewheel body ([LV3430100] – Delivered on the wheel)

Intended use

• ASTM CATEGORY 2: road and offroad with jumps less than 15cm
• For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels doesn’t exceed 120kg, bike included
• Recommended tire sizes: 25 to 32 mm
• Max. Pressure: see an indication on wheel and tire. If they differ, use the lowest of the 2

Delivered with

• UST valve and accessories
• User guide

KEY TECHNOLOGIES

UST Tubeless Technology
Traction and control Universal Standard for Tubeless. Ready to ride tubeless system. The UST concept improves traction, control, and comfort whilst reducing inertia and flats.

Instant Drive 360 Freewheel Technology
The new Instant Drive 360 freewheel system is super light and efficient. A large contactless rubber seal provides low friction, while a wide array of end caps makes it super versatile.

QRM Auto bearing preload Technology
Qualit de Roulements Mavic Auto Our latest innovation. Those cartridge bearings are of course double sealed with C3 internal clearance. Their preload is automatically adjusted to guarantee a perfect spin with no play in the long run.

ISM 4D Light Rim Technology
Inter Spoke Milling 4 Dimensions An exclusive Mavic patented concept, ISM 4D significantly reduces weight and inertia without compromising durability. Quicker accelerations, better handling, and more resistance; the right mix to make the most of any ride. The smooth profile also helps reduce aerodynamic drag

Maxtal Aluminum Alloy
Light and strong Exclusive to Mavic, this specific aluminum alloy offers a higher strength to weight ratio than conventional 6106 alloys.

Fore Tapeless Tubeless Technology
Stiffer and stronger Instead of being drilled, the lower rim bridge is pushed up on the inside, then threaded to enable the spoke nipples to be directly screwed in it, leaving the upper rim bridge intact.

SUP Welding Technology
Stronger and smoother joint Soud Usin Process. After bending, the rim joint is arc welded. The welded seam is then milled for a smooth finish.
