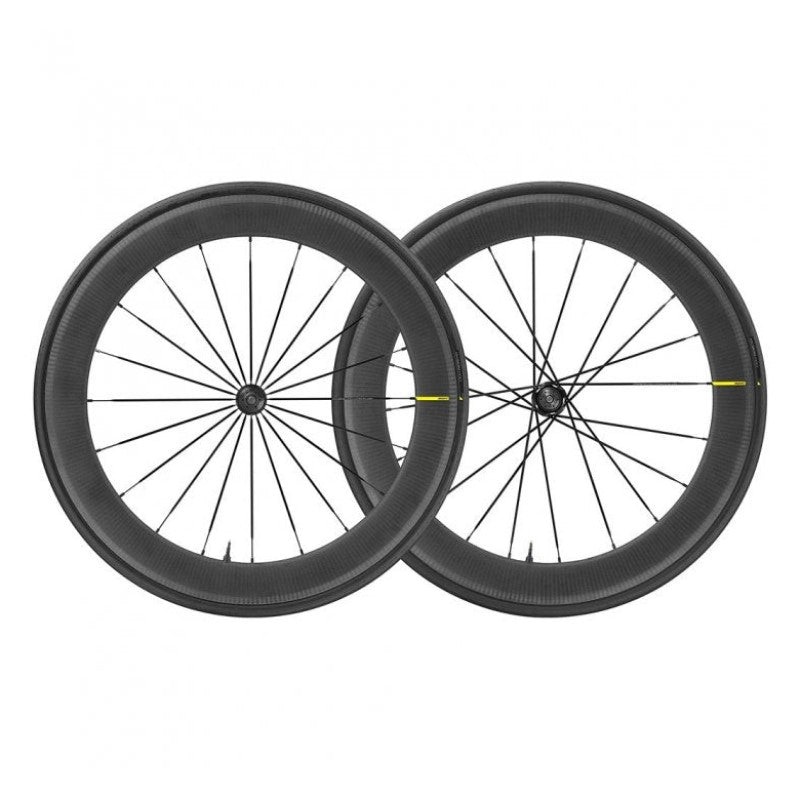

Track Wheels – Ellipse Pro Carbon UST
Developed with top speedsters in the Red Hook Crit series, this carbon wheel is engineered to be aerodynamic, durable, and flat-out fast for criterium or track racing

This is the secret weapon for fixed gear racers. Anyone committed to racing ultra-fast and highly technical street criteriums such as the famous Red Hook series demand wheels that deliver speed, reliability, and even more speed.

These wheels were developed with racers who initially rode our proven Ellipse training wheels, a standard for velodrome and fixed gear winter training. In an effort to elevate those racers performance possibilities, we tested various rim depths, spokes, and lacing styles in the tubular, clincher, and then UST Tubeless. That process led to the Ellipse Pro Carbon UST.

The 64mm deep Comete Pro Carbon UST rims are laced up with 20 patented steel aero spokes on our sturdy Ellipse hub. The rear hub is flip-flop style, so you can mount one cog on each side and make quick gear ratio swaps according to the racecourse or terrain.

• Weight: 1815 grams (Pair)
• Weight: 865 grams (Front)
• Weight: 950 grams (Rear).

Key Benefits

Aerodynamic and stiff for speed and acceleration
64mm deep full carbon NACA rim profile 26mm wide, optimized for 25mm tires for low drag and high crosswind stability 20 flat straight-pull spokes, laced 3x, for high lateral stiffness

Fast and efficient on straights, more control when cornering
UST eliminates tube friction for less rolling resistance UST lets you ride with lower tire pressures for improved grip in the corners

Easy to set up and maintain for daily training or race use
Simple tubeless tire setup and high puncture protection Flip-flop rear hub lets you use 2 cogs on the same wheel for more versatility.

Specifications

Rims

• Material: 3K carbon fibers
• Height: 64mm
• Drilling: traditional
• Valve hole diameter: 6.5 mm
• Tire: UST Tubeless and tubetype
• Internal width: 19 mm
• ETRTO size: 622x19TC Road
• Use with Mavic Tubeless Tape
• UST
• iTgMAX

Spokes

• Material: steel
• Shape: straight pull, elliptical aero, double-butted (patented)
• Nipples: steel, ABS
• Count: 20 front and rear
• Lacing: front radial, rear crossed 2

Hubs

• Front and rear bodies: aluminum
• Axle material: steel
• Fixed cog
• QRM+
• Versions
• Color: Black only

Compatibility

• Freewheel: fixed cog only, flip-flop hub (one cog possible on each hub side). Cog thread: 1,37x24TPI. Lock ring thread: left thread M33x1
• Front axle: for fixing nuts only (included), M9x1 thread
• Rear-axle: for fixing nuts only (included), M9x1 thread

Intended use

• ASTM CATEGORY 1: road only
• For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels doesn’t exceed 120kg, the bike included
• Recommended tire sizes: 25 to 32 mm
• Max. Pressure: see an indication on the wheel and tire. If they differ, use the lowest of the 2

Delivered with

• Mavic tire sealant (rear wheel)
• Tyre sealant syringe
• UST valve and accessories
• Pre-installed tubeless rim tape
• Multifonction adjustment wrench (delivered with rear wheel)
• User guide.
