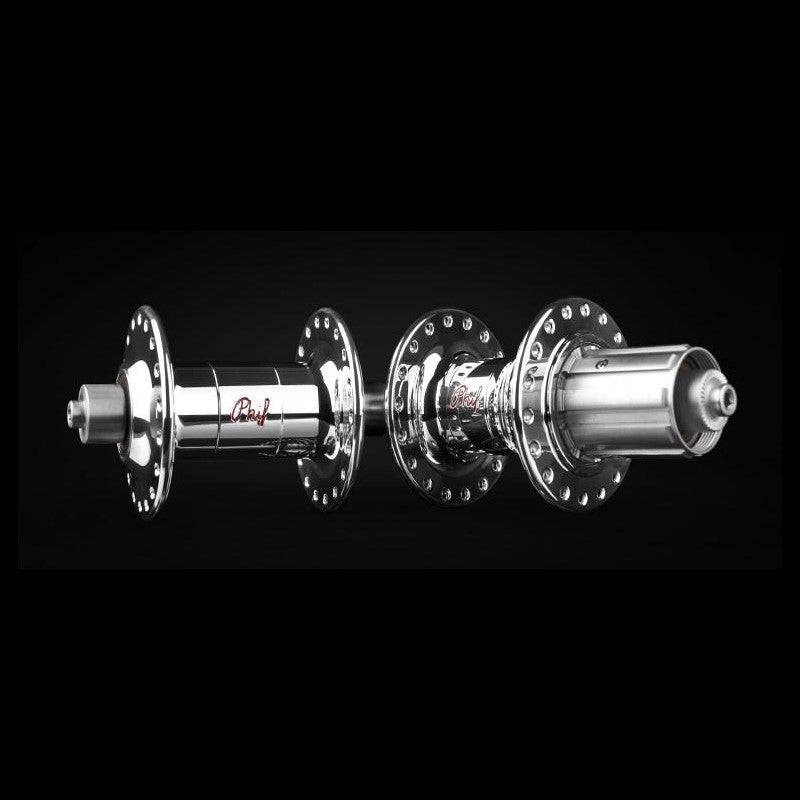

Our Classic rear touring hubs are available in 36, 40, and 48 spoke hole configurations (other spoke hole count options are available upon request). We also offer our rear touring hub with 2 bearing options: Standard Phil spec bearings which have full contact seals and have a 100% fill with our Phil Waterproof grease. Carbonyte Phil spec bearings are our low drag bearing option which has partial contact seals and has a 30% fill with our full synthetic Phil Carbonyte grease. Our 11-speed cassette hubs come with a spacer so you can run an 8, 9, or 10-speed cassette.

Specifications

• Hub shell material 6061 Aluminum
• Axle material Stainless steel (heat-treated)
• Body material 7075 Aluminum with hard anodized coating
• Pawl material Stainless steel (heat-treated)
• Endcap material Stainless steel (heat-treated)
• Rear hub width 135 mm
• Axle diameter 15 mm
• Cassette mechanism 5 double row pawls / 40 tooth ratchet ring
• Cassette compatibility Shimano 8, 9, 10 and 11-Speed
• Bearing availability 6902 (Standard), 6902 (Carbonyte)
• Rear hub weight 503 grams
• Rider and bike weight limit 280 lbs / 127 kgs
• Materials All of our manufactured items are machined out of US-produced materials.
• Hub Dimensions
• Axle length: 135 mm
• Left side flange diameter: 59 mm
• Right side flange diameter: 59 mm
• Left side flange to center: 31.5 mm
• Right side flange to center: 18 mm.

SKU# PW-DTC635
