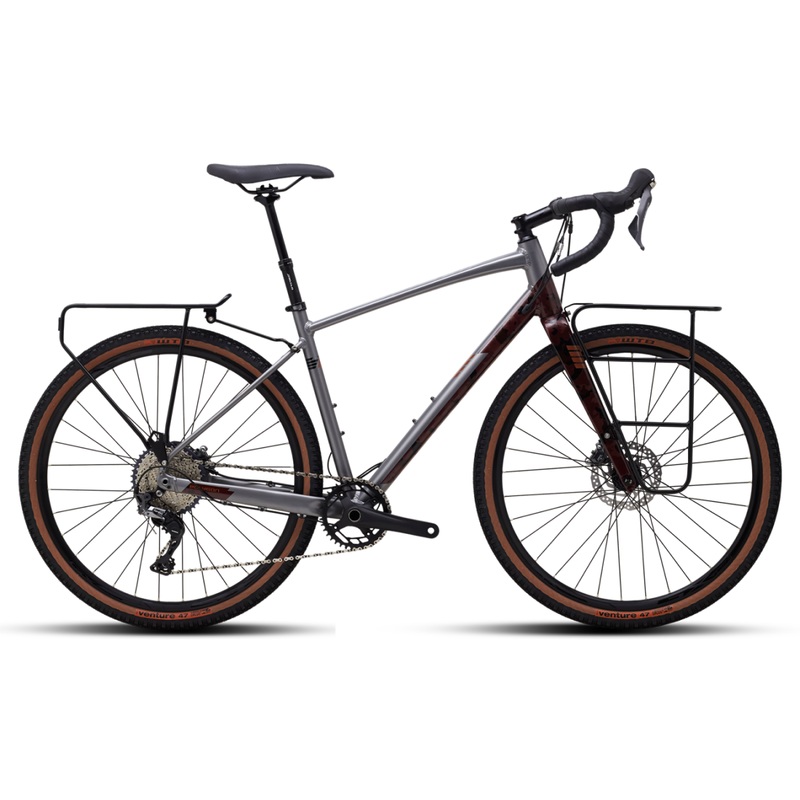

Polygon Gravel Bikes | Bend R5 27.5″
Get Faster, Get Lost, Get Beyond - Free to Be Free: Gravel Roads Won't Stop Us.Nothing compares to the feeling of freedom; free to cruise anywhere and get lost. So we introduce you to our demon gravel -- Bend R. Designed with an eye toward bikepacking adve
Get Faster, Get Lost, Get Beyond – Free to Be Free: Gravel Roads Won’t Stop Us.
Nothing compares to the feeling of freedom; free to cruise anywhere and get lost. So we introduce you to our demon gravel — Bend R. Designed with an eye toward bikepacking adventures. Comes with a taller head tube for greater comfort and a more upright riding position. With its flared drop bar, our Bend R offers improved aerodynamics without compromising ability to handle the bike on drops. Accompanied with our full carbon fork and extra tire clearance, you can cruise farther on any terrains. Let’s go wild and beyond, all roads are yours.
Note: Click Here to find your bike Size
Features
- Accompanied with flared handle bar, it improves aerodynamics with the narrower position without compromising your ability of handling on wider drops.
- Comfortable ride with vibration-damping carbon fork
- Comfort for long distances with under wraps gel pad on handlebar
- Comes with dropper seat posts that give you a perfect pedaling position at any time.
- Excellent brake performance with Hydraulic Disc Brake
Specification
- Frameset: Gravel ALX W/ Flatmount, Carrier Ready
- Fork: Carbon Rigid Fork W/flatmount – Carrier & Fender Ready
- Shifter: Shimano GRX ST-RX810, 1×11 Speed Trigger
- Crank: Alloy 2-Piece Crankset 38T
- Cassette: Shimano SLX CS-M7000 11-42T
- Rear Derailleur: Shimano GRX RD-RX812 Shadow+
- BB: Threaded BB
- Chain: KMC X11-1
- Saddle: Entity Saddle
- Seatpost: Alloy Dropper 110mm
- Handlebar: Entity Expert, Alloy
- Handlestem: Entity Expert, Alloy
- Headset: Alloy Tapered Headset
- Wheel Set: Alloy Double Wall Wheelset 32H
- Wheel Size: 650B
- Tire: Performance Tire 650X47C Tubeless Ready
- Brake Lever: Shimano RX810 Hydraulic Disc Brake
- Brake Caliper: Shimano RX810 Hydraulic Disc Brake
- Rotor: Shimano SM-RT26
Geometry & Size
| S | M | L | |
|---|---|---|---|
| Height (cm) | 150-163 | 163-175 | 175-188 |
| Seat Tube Length (A) | 430 | 480 | 535 |
| Seat Tube Angle (B) | 74 | 74 | 74 |
| Effective Seat Tube Angle (C) | 74 | 74 | 74 |
| Head Tube Length (D) | 140 | 170 | 200 |
| Head Tube Angle (E) | 71 | 71.5 | 72.5 |
| Effective Top Tube (F) | 528.2 | 551.9 | 576.2 |
| Bb Height (G) | 261.5 | 261.5 | 261.5 |
| Bb Offset (H) | 80 | 80 | 80 |
| Chainstay Length (I) | 420 | 420 | 420 |
| Wheelbase (J) | 999 | 1019 | 1034 |
| Frame Reach (K) | 365 | 380 | 395 |
| Frame Stack (L) | 569.1 | 599.5 | 632 |
| Standover Height (M) | 677.4 | 720.3 | 767 |
