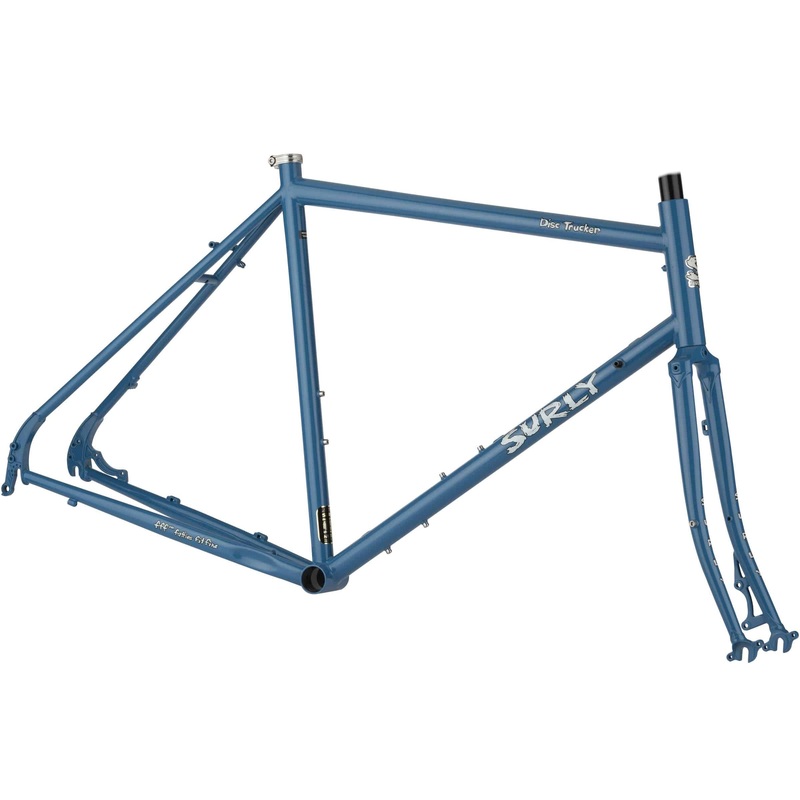

Surly Frame Set | Disc Trucker, Touring Bike
Surly's Disc Trucker Frameset is the ultimate for building a true touring, expedition, adventure, or commute bicycle that can handle any two-wheeled adventure with ease. The Chromoly tubing and fork are stable and comfortable for long days in the saddle an
Surly’s Disc Trucker Frameset is the ultimate for building a true touring, expedition, adventure, or commute bicycle that can handle any two-wheeled adventure with ease. The Chromoly tubing and fork are stable and comfortable for long days in the saddle and feature steel’s inherent ability to damp road buzz. The frame has clearance for panniers, braze-ons for front and rear racks, and three bottle cages. This Trucker accepts 26-inch wheels and disc brakes for mega-strength and great all-conditions, all-weather braking power. Load it up, hit the road or trail; it’s a tool to help you get lost and find yourself.
Surly Disc Trucker enjoys the same reputation as Long Haul Trucker; its one of the best riding and most value-packed drop bar touring bikes out there. Sometimes, however, a combination of load, climate, and terrain demands a bit more braking performance than a standard rim-brake LHT can provide.
Thats where the Disc Trucker comes in. Disc Trucker is a Long Haul Trucker specifically designed for the unique forces discs impose. Weve made sure it can run discs, racks, and fenders with no jury rigging, a somewhat unique feature weve just now decided to call simultaneous compatibility.
- Every braze-on youll ever need: front and rear rack mounts, fender eyelets, water bottle bosses, spare spoke holder, pump peg
- Available in 26 (sizes 4258 cm) and 700c (sizes 5664cm) wheel diameters
- Disc brake compatibility (if rim brakes are more your thing, check out the Long Haul Trucker)
- Clearance for 26 x 2.1 tires with or without fenders (26 platform) or 700c x 42mm with fenders, 45mm without fenders (700c platform)
Frameset Specification:
| Sizes | 26″ wheel 4258cm, 700c wheel 5664cm |
|---|---|
| Frame | Surly Long Haul Trucker,100% Surly 4130 CroMoly steel.
Surly Long Haul Trucker, 100% Surly 4130 CroMoly steel. The main triangle is double-butted. TIG-welded. |
| Fork | Surly Long Haul Trucker, 4130 CroMoly, lugged and brazed.
Surly Long Haul Trucker, 4130 CroMoly, lugged and brazed. Proprietary sloping crown with threaded eyelets, tapered and butted curved blades with mid-blade rack eyelets, dual dropout eyelets |
| Seatpost Clamp | Surly Stainless, 30.0mm (Surly stainless included) |
| Frame Construction |
4130 Chromoly, Natch tubing, double-butted main triangle, TIG welded, ED coated |
|---|---|
| Fork Construction |
4130 Chromoly, Natch tubing, double-butted tapered fork blades, brazed lugs, ED coated vertical |
| Rear Dropout Configuration |
Vertical |
| Rear Hub Spacing |
10 x 135mm |
| Front Hub Spacing |
10 x 100mm |
| Rear Brake |
Disc – 51mm I.S. (160mm max rotor) |
| Front Brake |
Disc – 51mm I.S. (160mm max rotor) |
| Head Tube |
34mm |
| Steerer Tube |
28.6mm (1-1/8″) |
| Crown Race |
30mm (1-1/8″) |
| Stock Headset Upper (S.H.I.S.) |
EC34/28.6 |
| Stock Headset Lower (S.H.I.S.) |
EC34/30 |
| Seat Collar |
30mm |
| Seatpost |
27.2mm |
| Front Derailleur (Clamp) |
Bottom-pull (28.6mm) |
|---|---|
| Max Chainring (CL)[3] |
1x (Road): 44T 2x (Road): 42/53T 3x (Road): 38/52/56T |
| Bottom Bracket |
68mm threaded (1.37″ x 24TPI) |
| Tire Clearance Frame[1]/[2] |
26in: 26 x 2.1″ (with or without fenders) 700c: 700c x 42mm (w/ fenders) 700c: 700c x 45mm (w/o fenders) |
| Tire Clearance Fork[1] |
26in: 26 x 2.0″ (with or without fenders) 700c: 700c x 50mm (with or without fenders) 700c: 29 x 2.0″(with or without fenders) |
| Rigid Fork Spec |
26in: 376 x 45mm 700c: 390 x 45mm |
| Max Suspension Fork Length[4] |
N/A |
| Bottle Mounts Frame |
3 Standard |
| Bottle Mounts Fork |
N/A |
| Rack Mounts Frame |
Yes (upper and lower threaded) |
| Rack Mounts Fork |
Yes (upper, lower, and mid-blade threaded) |
| Fender Mounts Frame |
Yes |
| Fender Mounts Fork |
Yes |
| Other Features |
Chainstay mounted spoke holder Surly removable kickstand plate (included) Downtube mounted shifter bosses |
Geometry:
- 700C
| 42cm | 46cm | 50cm | 52cm | 54cm | 56cm | 58cm | |
|---|---|---|---|---|---|---|---|
| Reach | 367.2 | 371.3 | 374.5 | 374.6 | 379.4 | 388.3 | 393.5 |
| Stack | 497.2 | 502.9 | 532.3 | 550.3 | 568.3 | 588.1 | 606.1 |
| Head Tube Angle | 70.0 | 70.0 | 71.0 | 71.0 | 71.0 | 71.0 | 71.0 |
| Head Tube Length | 110.7 | 116.7 | 144.0 | 163.0 | 182.0 | 203.0 | 222.0 |
| Seat Tube Length | 420.0 | 460.0 | 500.0 | 520.0 | 540.0 | 560.0 | 580.0 |
| BB Drop | 47.0 | 47.0 | 47.0 | 47.0 | 47.0 | 47.0 | 47.0 |
| Wheelbase | 1036.6 | 1042.7 | 1046.8 | 1053.1 | 1064.0 | 1079.8 | 1091.2 |
| Chainstay Length | 460.0 | 460.0 | 460.0 | 460.0 | 460.0 | 460.0 | 460.0 |
| Top Tube Length, Actual | 492.7 | 508.4 | 525.4 | 535.0 | 549.7 | 564.5 | 580.3 |
| Top Tube Length, Effective | 505.0 | 515.0 | 530.0 | 540.0 | 555.0 | 570.0 | 586.0 |
| Seat Tube Angle | 75.0 | 74.5 | 74.0 | 73.5 | 73.0 | 73.0 | 72.5 |
| Standover Height | 702.1 | 723.2 | 756.1 | 774.5 | 792.4 | 811.9 | 829.7 |
| Stem Length | 70 | 70 | 70 | 90 | 100 | 110 | 120 |
| Stem Angle | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
