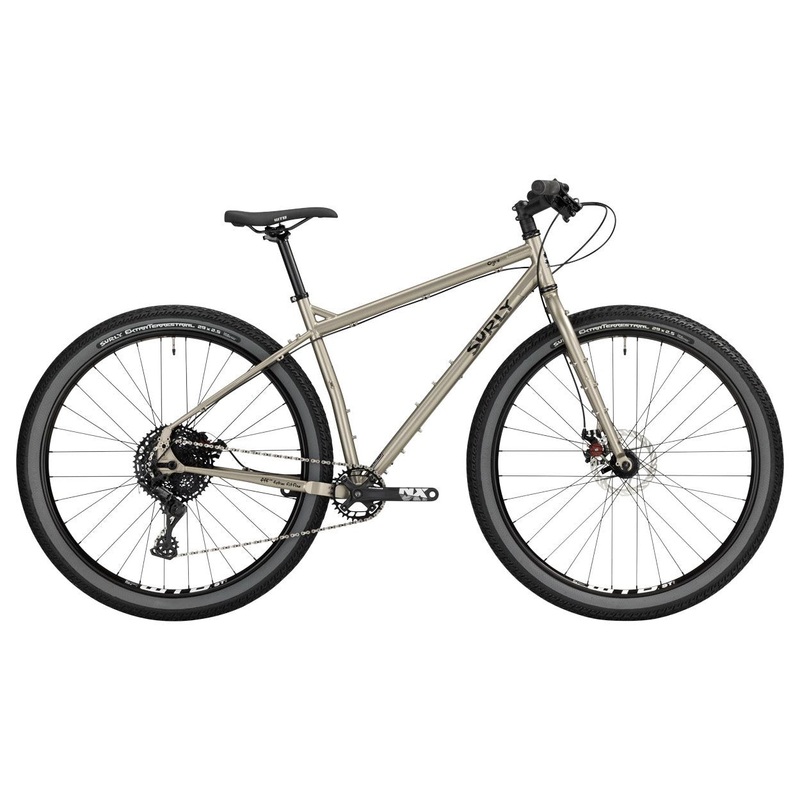

Surly Gravel Bikes | Ogre, All-Season Commuter
A steel utility vehicle designed for fully loaded exploration, whether across town or the country.If youre like us, your bike needs likely change by the day, week, month or year. Quite the adaptable little beast, Ogre can get you to your job during the wee
A steel utility vehicle designed for fully loaded exploration, whether across town or the country.
If youre like us, your bike needs likely change by the day, week, month or year. Quite the adaptable little beast, Ogre can get you to your job during the week, then way out of town on the weekend. Its not sluggish on pavement or gravel and can also hold its own on singletrack.
Ogre is designed to be the ultimate steel utility vehicle. It relishes in those take-the-long-way-home-and-find-some-beverages-along-the-way sort of commutes. Snow, sleet or sweltering humidity, this is an ideal year-round commuter bike. You can also haul enough crap on it that you dont even have to go home if you dont want to.
- All the barnacles you could ever possibly ask for including rack and fender, multiple three-pack mounts and mid-blade.
- Gnot-Boost rear spacing with Rohloff torque arm slot and Bill/Ted trailer mount
- Clearance for 29 x 2.5 or 27.5″ x 2.8″ tires with fenders
Bike Capabilities
- Off Road: 4 out of 5
- Bikepacking: 5 out of 5
- Pavement Touring: 4 out of 5
- Tire Clearance: 4 out of 5
- Commuting: 4 out of 5.
Specifications
- Frame: 100% Surly Chromoly Steel, Natch tubing, double-butted main triangle, TIG welded, E.D. coated
- Fork: 100% Surly Chromoly Steel, Natch tubing, double-butted tapered fork blades, TIG welded, E.D. coated
- Seatpost Clamp: Surly Stainless 30.0
- Headset: Cane Creek
- Brakes: Avid BB5
- Brake Levers: Tektro FR5
- Rotors: 160F/160R
- Shifters: Microshift SL-M9605 Trail Pro
- Stem: Kalloy 31.8
- Handlebar: Salsa Bend
- Grip/Tape: Velo Black
- Saddle: WTB Volt
- Seatpost: ProMax 27.2×300
- Crankset: SRAM NX 32t
- Bottom Bracket: SRAM Powerspline
- Front Derailleur: N/A
- Rear Derailleur: Microshift RD-M6205 with Clutch
- Cog or cogset: OE 10-spd 11-48t
- Chain: KMC X10
- Front Hub: Novatec 9×100 QR, 6-bolt disc
- Rear Hub: Novatec 12×142 QR, 6-bolt disc
- Rims: WTB i29
- Tires: Surly ExtraTerrestrial 29×2.5″ 60tpi, Tubeless Ready
Geometry & Size Guide
| SIZE | SM | MD | LG | XL |
|---|---|---|---|---|
| Reach | 395.5 | 410.5 | 427.6 | 447 |
| Stack | 592 | 603.4 | 613 | 632 |
| Head Tube Angle | 71.5 | 72.0 | 72.0 | 72.0 |
| Head Tube Length | 110 | 120 | 130 | 150 |
| Seat Tube Length | 406.4 | 457.2 | 508 | 558 |
| BB Drop | 68 | 68 | 68 | 68 |
| Wheelbase | 1049.4 | 1064.5 | 1084.6 | 1110 |
| Chainstay Length | 440 | 440 | 440 | 440 |
| Top Tube Length, Actual | 545.6 | 560.7 | 580.2 | 607 |
| Top Tube Length, Effective | 575 | 595 | 615 | 640 |
| Seat Tube Angle | 73.0 | 73.0 | 73.0 | 73.0 |
| Standover Height | 763.5 | 795.7 | 824.5 | 857.85 |
| Stem Length | 70 | 80 | 90 | 100 |
| Stem Angle | 7 | 7 | 7 | 7 |
| Handlebar Width | 700 | 740 | 740 | 740 |
| Crank Length | 170 | 175 | 175 | 175 |
| Fork Length | 447 | 447 | 447 | 447 |
| Fork Rake | 43 | 43 | 43 | 43 |
