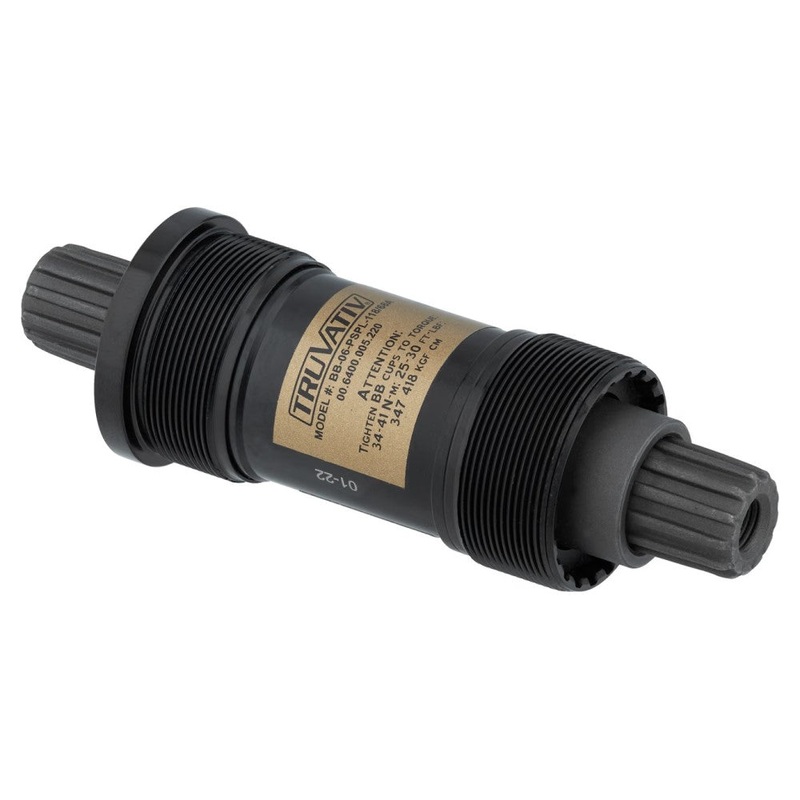

Truvativ PowerSpline Chromoly Bottom Bracket

Features

• PowerSpline (PS): heat-treated chromoly spline-taper spindle with M8 (crank mount) thread bore and CNC machined alloy cups/spacer shell: (325g)
• Sealed cartridge bearings with single-insert stop (chain line control)
• English (1.37″ x 24 TPI – LH/RH) threads fit 68mm; or 68mm E-type, and 73mm shell widths (no 73mm E-type).

Specifications

• Frame Interface: BSA/English Threaded
• Spindle Interface: TruVativ Power Spline
• Cup Material: aluminium, CNC machined
• Axle Material: CrMo, heat treated
• Bottom Bracket Shell ID: 1.37
• Shell Width: 68E, 73mm
• Spindle Length: 118mm
• Bearings: Cartridge Bearings, Sealed
• Mount: Standard or for E-type front derailleurs
• Colour: Black
• Weight: 325g.

SKU# 00.6415.030.020
