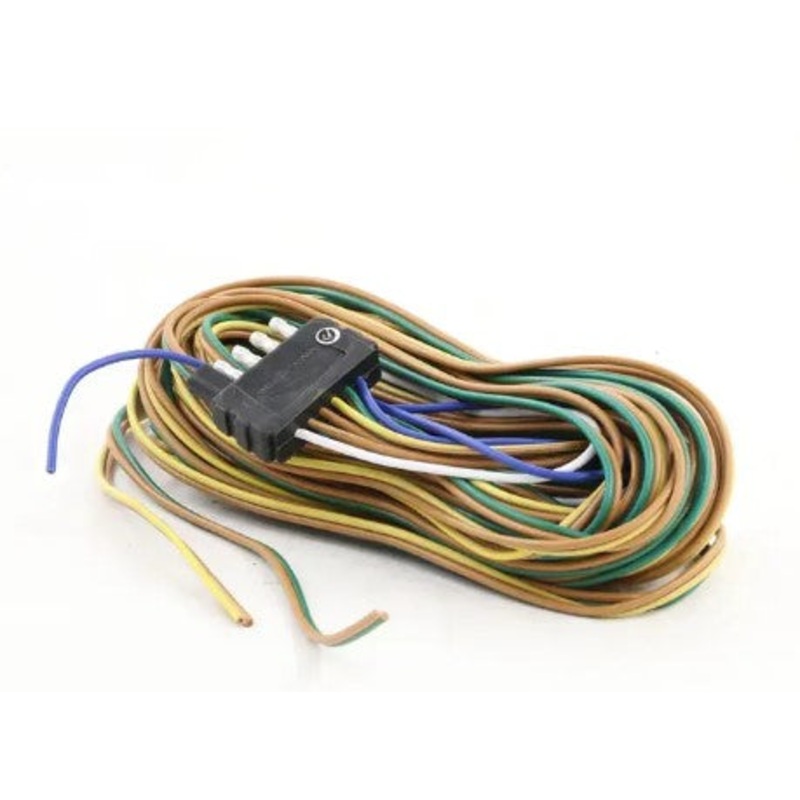

5-Way trailer harness connects to your tow vehicle to control trailer light functions. Wishbone-style harness comes with 2 taillight wires split for simple wiring. Auxiliary wire signals trailer brakes to disengage when in reverse. (706-1530)

Features:

• 5-Way trailer harness connects to your tow vehicle to control trailer light functions
  • Ideal for marine trailers with hydraulic or surge brakes
• Wishbone-style harness comes with 2 taillight wires split for simple wiring
  • Allows you to run wires separately down each side of the trailer to taillights without needing a jumper wire
• Auxiliary wire (blue) connects to backup light circuit to disengage surge brakes when you are driving in reverse
  • Hydraulic actuator must have electric lockout feature built-in to disengage the trailer brakes
• Color coded wires help with installation
  • White – ground
  • Brown – tail lights
  • Yellow – driver side stop/turn
  • Green – passenger side stop/turn
  • Blue – auxiliary wire

Specs:

• Wire harness length: 25′
• Wire gauge (all): 20
• Ground wire length: 30″
• Auxiliary wire length: 5′
