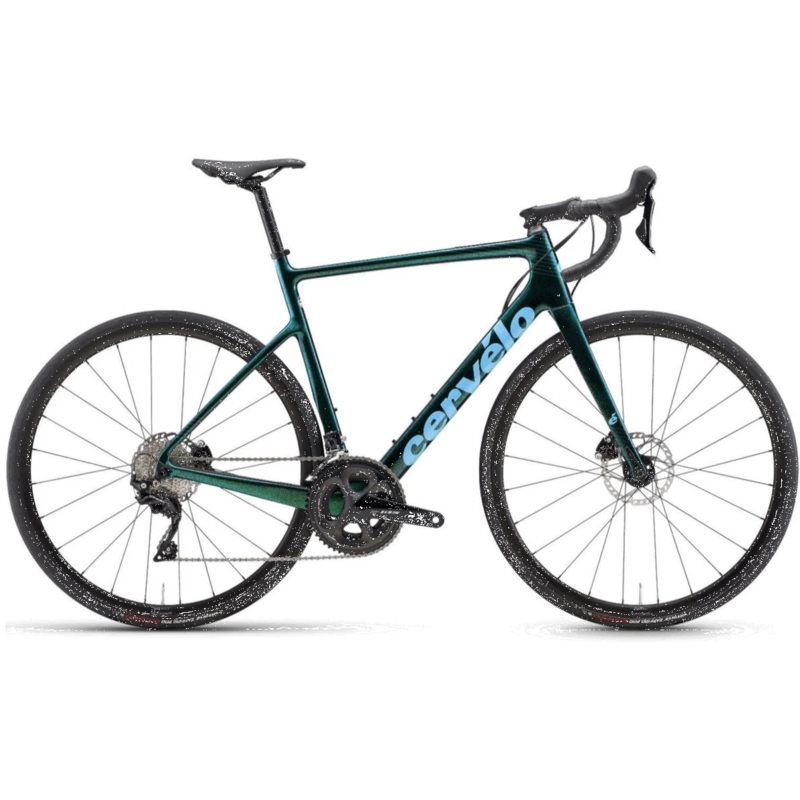

Cervelo Road Bikes | Caledonia Shimano 105 (2022)
A Bike for The Way Riders Ride Caledonia doesnt fit in a box nicely, and we like it that way. It was conceived on our Thursday night ridesroutes that often play fast and loose with road ride. Modern road riders are looking for bikes to handle long-distance
A Bike for The Way Riders Ride
Caledonia doesnt fit in a box nicely, and we like it that way. It was conceived on our Thursday night ridesroutes that often play fast and loose with road ride. Modern road riders are looking for bikes to handle long-distance, high pace, no limits, and offer maximum funthe Caledonia delivers performance, comfort, and speed. Oh, and you can fit a 34mm tire in there. Or 31mm with fenders.
Removable FDM
Our bolt-on front derailleur mount is made from high-strength aluminium alloy and attaches to the frame with two countersunk screws. This allows for easy replacement in the event of damage but also enables you to adapt to new standards as they become available or remove the front derailleur mount completely if you choose a 1x system.
Integrated Accessory Mounts
Integrated mounts enable the use of fenders, lights, and computers without compromising the aerodynamics or structure of your bike. The built-in mount systems provide a simple and clean-looking solution.
Specifications
- Sizes: 48, 51, 54, 56, 58, 61
- Fork: Cervlo All-Carbon, Tapered Caledonia Fork
- Headset: FSA IS2 1-1/8 x 1-1/2
- Thru Axles: Cervelo Indexed Thru-Axles w/ Lever, 12×100/142
- Wheels: Alexrims Boondocks-5D, 28h (F), 28h (R), 21mm IW, 6-Bolt, Tubeless Ready
- Tires: Vittoria Zaffiro Pro V Folding G2.0 30c
- Crankset: Shimano 105 R7000 52/36
- Bottom Bracket: JY-BB 24
- Chain: Shimano CN-HG601, 11-Speed
- Front Derailleur: Shimano 105 R7000, 11-Speed
- Rear Derailleur: Shimano 105 R7000, 11-Speed
- Cassette: Shimano 105 R7000, 11-Speed, 11-34
- Shifters: Shimano 105 R7020, 11-Speed
- Handlebar: Cervlo Alloy
- Stem: Cervlo Alloy
- Brake Calipers: Shimano 105 7020 Hydraulic Disc
- Saddle: Cervelo Road Saddle OR Selle Italia MODEL X Superflow FeC Alloy
- Seatpost: Cervlo 27.2 Alloy
- Brake Rotor: Shimano SM-RT66, 160mm
- Accessories: Cervelo Faceplate Front Computer/Accessory Mount, Removeable Fender Mounts.
Geometry & Sizing
| 48 | 51 | 54 | 56 | 58 | 61 | |
|---|---|---|---|---|---|---|
| Reach |mm | 360 | 369 | 378 | 387 | 396 | 405 |
| Stack |mm | 505 | 530 | 555 | 580 | 605 | 630 |
| Head Tube Angle | 70.5 | 71.5 | 72 | 72 | 72 | 72 |
| Front Center |mm | 579.4 | 581.7 | 591.5 | 608.5 | 626 | 643 |
| Bottom Bracket Drop |mm | 76.5 | 76.5 | 74 | 74 | 71.5 | 71.5 |
| Head Tube Length |mm | 89.5 | 109.9 | 136 | 162.3 | 191.2 | 217.5 |
| Top Tube Length |mm | 502 | 522 | 543 | 565 | 581 | 598 |
| Seat Tube Angle | 74.5 | 74 | 73.5 | 73 | 73 | 73 |
| Standover Height |mm | 701 | 741 | 773 | 796 | 823 | 847 |
| Trail |mm | 60 | 60 | 60 | 60 | 60 | 60 |
| Wheel Size | 700C | 700C | 700C | 700C | 700C | 700C |
| Fork Offset |mm | 59 | 53 | 50 | 50 | 50 | 50 |
| Wheelbase |mm | 982.2 | 984.5 | 995.2 | 1012.3 | 1030.7 | 1047.8 |
| Chainstay Length |mm | 415 | 415 | 415 | 415 | 415 | 415 |
