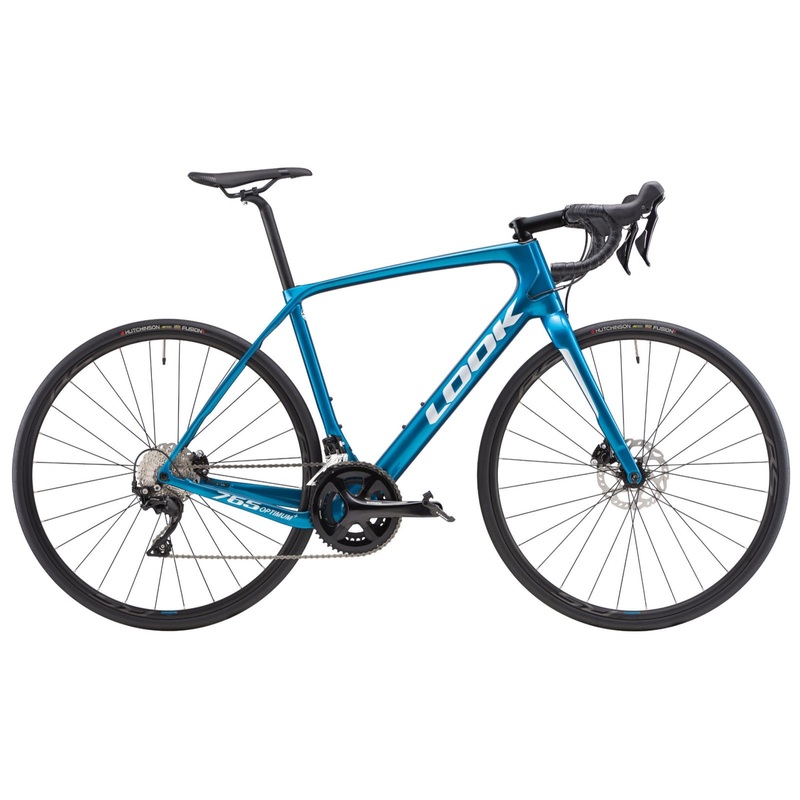

Look Road Bike | 765 Optimum Plus Disc Brake, Shimano 105
765 Optimum+ Metallic Blue Glossy The sky blue of this 765 OPTIMUM+ Metallic Blue Glossy is set to carry you to new horizons Horizons that are synonymous with comfort and simplicity thanks to the endurance-oriented frame geometry and reliable SHIMANO derai
Color:
Size:
Category: Road Bikes
765 Optimum+ Metallic Blue Glossy
The sky blue of this 765 OPTIMUM+ Metallic Blue Glossy is set to carry you to new horizons Horizons that are synonymous with comfort and simplicity thanks to the endurance-oriented frame geometry and reliable SHIMANO derailleurs, disc brakes, and 105 groupsets.
| Size bike | Cyclist’s height |
|---|---|
| XS | <166 |
| S | 164-173 |
| M | 171-180 |
| L | 178-187 |
| XL | >185 |
Why You’ll Love It?
- Say yes to versatility and enjoy the comfort and wide clearance of the 3D Wave seatstays, allowing you to mount tire widths up to 700×42
- An endurance-oriented geometry for ultimate comfort, thanks to a frame 10mm shorter and 20mm higher than a pure racing frame
- Uncomplicated does not mean mundane: the brilliant blue metallic paintwork is sure to stand out in the crowd
Technical Specifications
- Seatpost LOOK LS3 Alloy 27,2×350 mm
- Saddle San Marco Monza full fit
- Stem LOOK LS2 alloy (XS 90 mm / S 100 mm / M-L 110 mm / XL 120mm)
- Handlebar LOOK LS2 alloy (XS-S 40 cm/ M-L 42 cm / XL 44 cm)
- Wheels Shimano WH RS 171
- Tires Hutchinson Fusion 5 tubeless ready 700×30 mm (bike delivered with inner tube)
- Crankset Shimano RS510 (XS-S 170 mm / M-L 172,5 mm / XL 175mm)
- Chainrings Shimano RS510 50×34 t
- Chain Shimano 105 HG 601
- Bottom bracket BB PF 30 / Token ninja TF 841 – 46
- Cassette Shimano 105 R 7000 11X32 t
- Shifters Shimano 105
- Derailleurs Shimano 105 R 7000
- Rotors Shimano center lock RT 70 Front: 160 mm / Rear: 140 mm
- Weight 9,4 kg* (size M / without pedals) *estimate
- Sizes XS – S – M – L – XL.
Geometry & Size Guide
Wheels Diameter: 700 mm / 27,6 inch
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| Stack | 530 | 554 | 578 | 602 | 626 |
| Reach | 355 | 365 | 375 | 385 | 395 |
| I – Head tube () | 70.3 | 70.3 | 70.3 | 70.3 | 70.3 |
| J – Seat tube () | 74 | 74 | 73 | 73 | 73 |
| A – Seat tube | 470 | 490 | 510 | 535 | 560 |
| B – Top Tube horizontal | 507 | 524 | 552 | 569 | 586.5 |
| C – Front Center | 577 | 595.5 | 614 | 632.5 | 651 |
| D – Trail | 70.5 | 70.5 | 70.5 | 70.5 | 70.5 |
| F – Fork Offset | 50 | 50 | 50 | 50 | 50 |
| G – Chainstays | 420 | 420 | 420 | 420 | 420 |
| K – Head tube | 111.5 | 137 | 162.5 | 188 | 213.5 |
| L – Fork | 395 | 395 | 395 | 395 | 395 |
| HAV | 70 | 70 | 70 | 70 | 70 |
| Standover | 740 | 764 | 788 | 812 | 836 |
SKU# 24364
