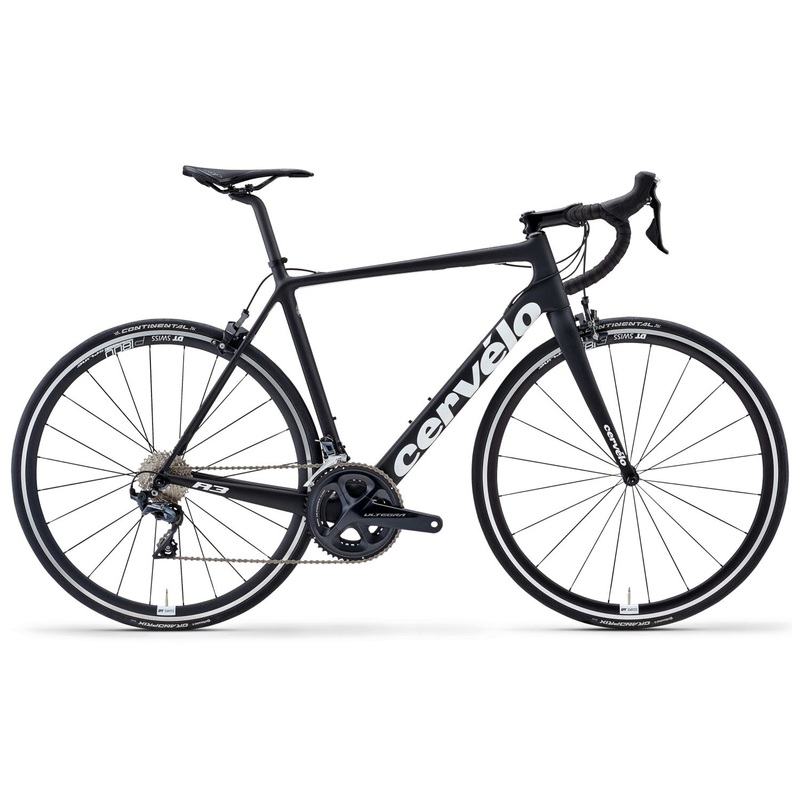

Cervelo Road Bikes | R3 Shimano Ultegra R8000 (2018)
The R3 is a high-performance allrounder, ready for everything from the Tuesday night world champs to an epic weekend ride. Light, stiff, and designed for confidence-boosting handling, this is a bike that you can trust. Using special carbon layup and constr
The R3 is a high-performance allrounder, ready for everything from the Tuesday night world champs to an epic weekend ride. Light, stiff, and designed for confidence-boosting handling, this is a bike that you can trust. Using special carbon layup and construction techniques, Cervelo reduced the frame’s weight while making it stiffer at key points. The result of this impressive stiffness-to-weight ratio is a lively and confidence-inspiring bike. Stiff and lightweight, with geometry that promotes stable and predictable handling, the R3 urges you to attack on the climb and push the pace on the descent. The R3 features a robust chain stay protector, a future-proof cable management system (compatible across all types of shifting systems), and a reduced friction bottom bracket guide. Clearance for tires up to 28mm wide and frame compliance create a smoother ride.
Features
- Squoval Max tubes combine the attributes of a square with an oval but with a more aerodynamic leading edge
- BBright bottom bracket allows the use of larger-sized tubes in the seat tube, down tube, and lefthand chain stay
- Elite Fit offers a wide range of positions for all athletes without compromising handling, comfort, or performance
- Shimano Ultegra drivetrain
- DT Swiss P1800 Spline wheels.
Specifications
- Frame: Cervelo All-Carbon
- Fork: Tapered R3 Fork
- Headset: FSA IS2 1-1/8″ x 1-1/2″
- Rims/Wheels: DT Swiss P1800 Spline 32
- Tires: Continental Grand Prix SL 700 x 25c
- Crankset: Shimano Ultegra 8000
- Chainrings: 52/36T
- Bottom Bracket: Cervelo BBright Connect 24×90
- Chain: Shimano CN-HG701, 11 spd
- Front Derailleur: Shimano Ultegra 8000, 11 spd
- Rear Derailleur: Shimano Ultegra 8000, 11 spd
- Cassette: Shimano Ultegra CS-R8000, 11-30T
- Shifters: Shimano Ultegra 8000, 11 spd
- Handlebars: Cervelo AB07 Ultra Light Alloy Bar
- Stem: Cervelo Ultra Light Alloy Stem
- Brakes: Shimano Ultegra 8000
- Saddle: Prologo Zero II STN
- Seat Post: Cervelo Carbon SP19
Geometry & Sizing
| Size | 48 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| STACK | 505 | 530 | 555 | 580 | 605 | 630 |
| REACH | 360 | 369 | 378 | 387 | 396 | 405 |
| EFFECTIVE SEAT TUBE ANGLE | 73 | 73 | 73 | 73 | 73 | 73 |
| TOP TUBE | 515 | 531 | 548 | 564 | 581 | 598 |
| WHEEL SIZE | 971 | 974 | 973 | 993 | 1011 | 1027 |
| HEAD TUBE ANGLE | 71 | 72 | 73 | 73 | 73 | 73 |
| FORK OFFSET | 57 | 51 | 45 | 45 | 45 | 45 |
| HEAD TUBE LENGTH | 89 | 110 | 133 | 159 | 188 | 214 |
| BB DROP | 74.5 | 74.5 | 72 | 72 | 69.5 | 69.5 |
| FRONT CENTER | 573 | 575 | 577 | 594 | 611 | 627 |
| REAR CENTER | 410 | 410 | 410 | 410 | 410 | 410 |
| STAND OVER HEIGHT | 693 | 723 | 753 | 784 | 815 | 846 |
*Note: Images are for representational purposes only. Actual size/packaging varies with product type/size.
